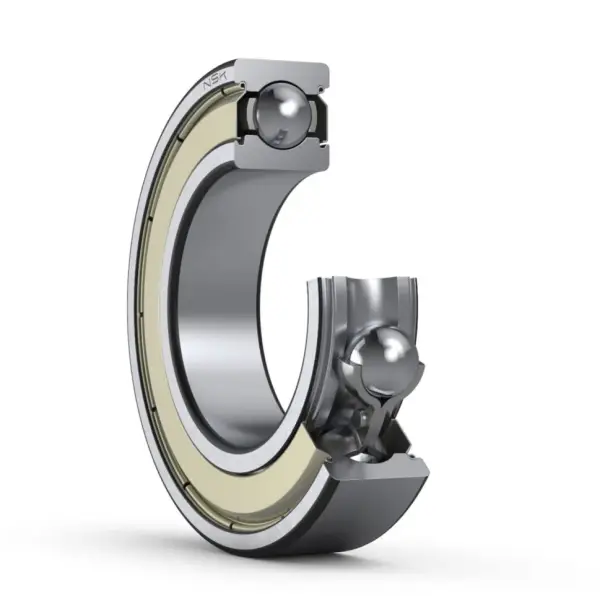

NSK 6024ZZ
Single-Row Deep Groove Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
6024ZZ

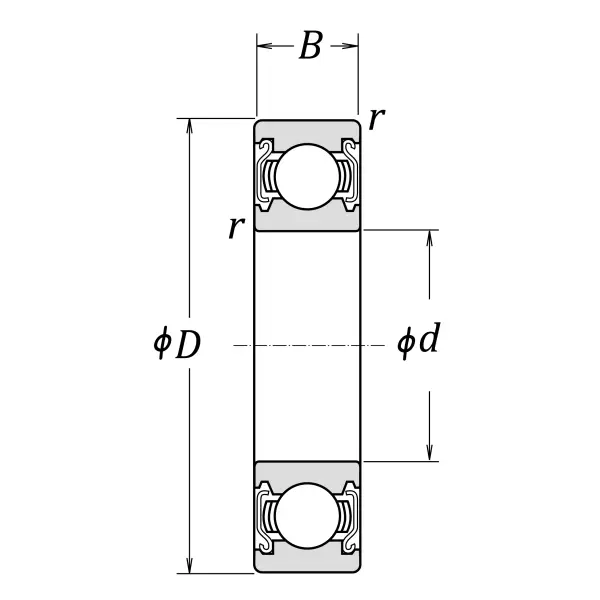

Boundary Dimensions
d
120
mm
Bore diameter
D
180
mm
Outside diameter
B
28
mm
Width
r (min.)
2
mm
Chamfer dimension
Basic Load Ratings
Cr
97000
N
Basic dynamic load rating
C0r
80000
N
Basic static load rating
Speeds
Grease
4000
min-1
Grease lubrication

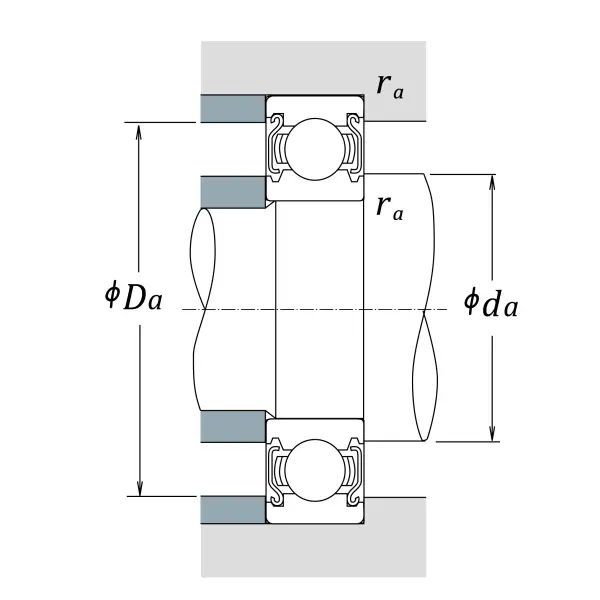

da (min.)
129
mm
Diameter of shaft abutment
da (max.)
134.5
mm
Diameter of shaft abutment
Da (max.)
171
mm
Diameter of housing abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
fo
15.7
Factor
