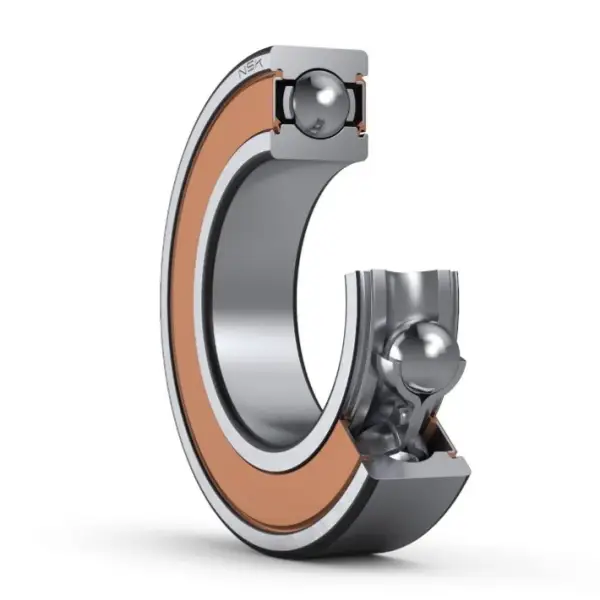

NSK 6028DDU
Single-Row Deep Groove Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
6028DDU

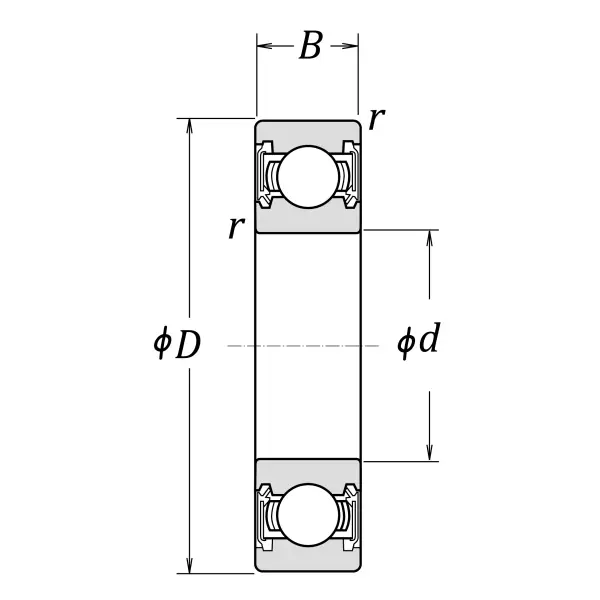

Boundary Dimensions
d
140
mm
Bore diameter
D
210
mm
Outside diameter
B
33
mm
Width
r (min.)
2
mm
Chamfer dimension
Basic Load Ratings
Cr
121000
N
Basic dynamic load rating
C0r
109000
N
Basic static load rating
Speeds
Grease
1800
min-1
Grease lubrication
da (min.)
149
mm
Diameter of shaft abutment
da (max.)
158.5
mm
Diameter of shaft abutment
Da (max.)
201
mm
Diameter of housing abutment
ra (max.)
2
mm
Radius of shaft or housing fillet

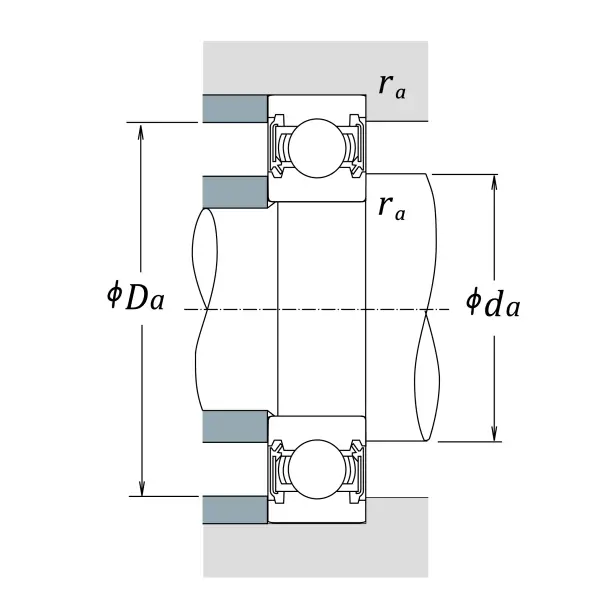

Abutment and Fillet Dimensions
fo
16
Factor
