NSK 6034VV
Single-Row Deep Groove Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
6034VV

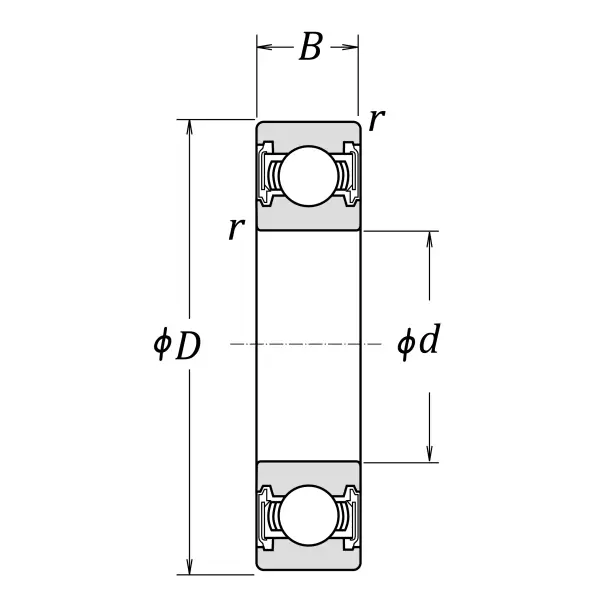

Boundary Dimensions
d
170
mm
Bore diameter
D
260
mm
Outside diameter
B
42
mm
Width
r (min.)
2.1
mm
Chamfer dimension
Basic Load Ratings
Cr
177000
N
Basic dynamic load rating
C0r
161000
N
Basic static load rating
Speeds
Grease
2200
min-1
Grease lubrication

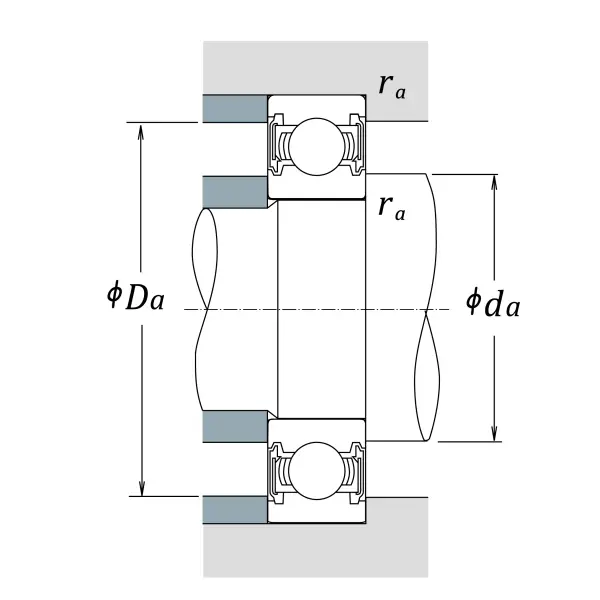

da (min.)
181
mm
Diameter of shaft abutment
da (max.)
194.5
mm
Diameter of shaft abutment
Da (max.)
249
mm
Diameter of housing abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
fo
15.8
Factor
