NSK 62/28DDU
Single-Row Deep Groove Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
62/28DDU

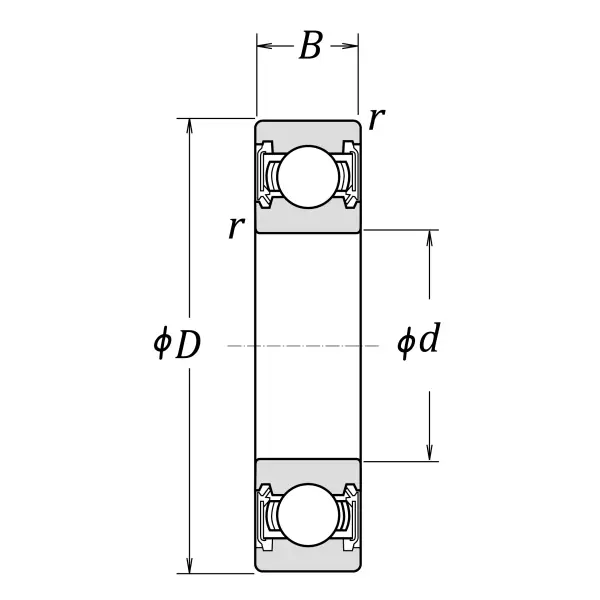

Boundary Dimensions
d
28
mm
Bore diameter
D
58
mm
Outside diameter
B
16
mm
Width
r (min.)
1
mm
Chamfer dimension
Basic Load Ratings
Cr
18300
N
Basic dynamic load rating
C0r
9500
N
Basic static load rating
Speeds
Grease
8000
min-1
Grease lubrication
da (min.)
33
mm
Diameter of shaft abutment
da (max.)
35.5
mm
Diameter of shaft abutment
Da (max.)
53
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet

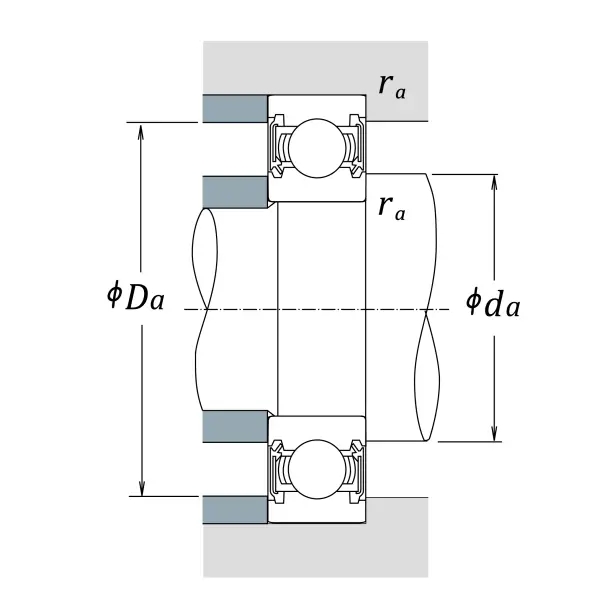

Abutment and Fillet Dimensions
fo
13.9
Factor
