NSK 6207VV
Single-Row Deep Groove Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
6207VV

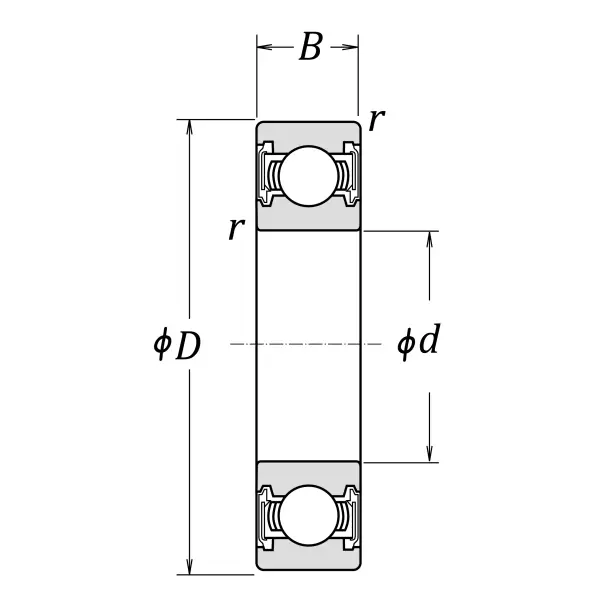

Boundary Dimensions
d
35
mm
Bore diameter
D
72
mm
Outside diameter
B
17
mm
Width
r (min.)
1.1
mm
Chamfer dimension
Basic Load Ratings
Cr
28200
N
Basic dynamic load rating
C0r
15300
N
Basic static load rating
Speeds
Grease
11000
min-1
Grease lubrication
da (min.)
41.5
mm
Diameter of shaft abutment
da (max.)
44.5
mm
Diameter of shaft abutment
Da (max.)
65.5
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet

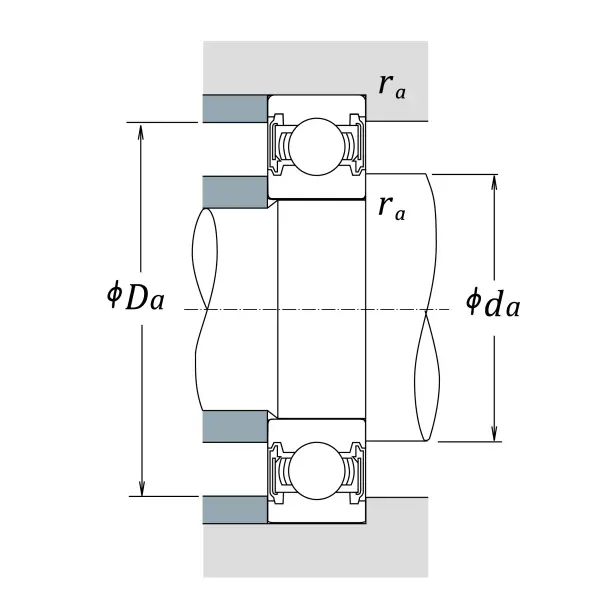

Abutment and Fillet Dimensions
fo
13.8
Factor
