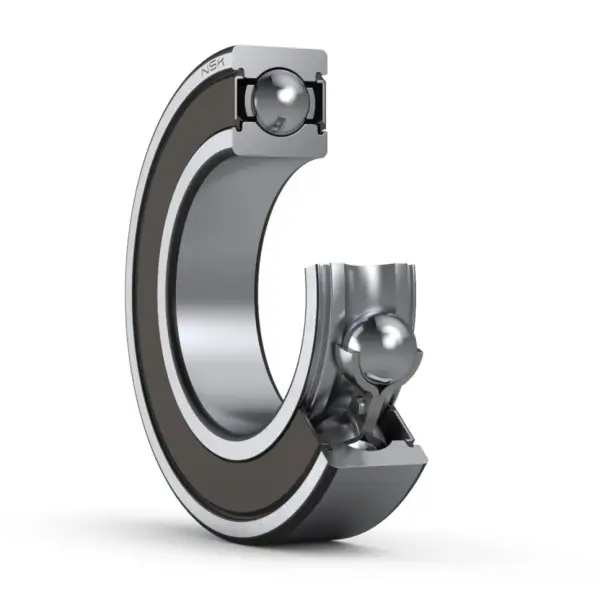

NSK 6214VV
Single-Row Deep Groove Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
6214VV

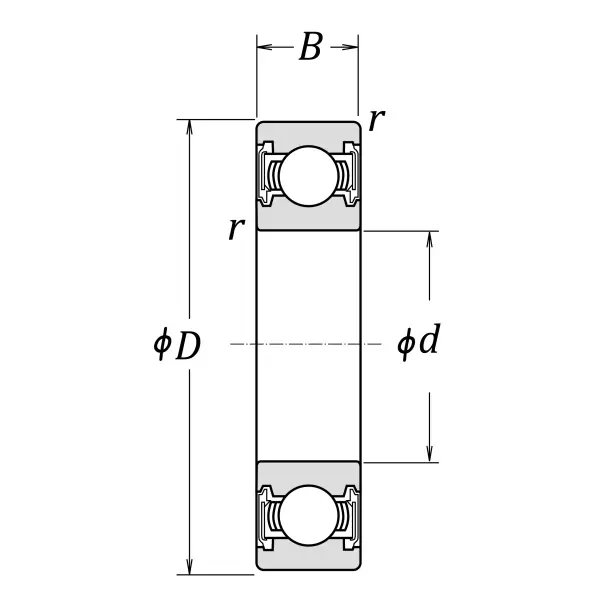

Boundary Dimensions
d
70
mm
Bore diameter
D
125
mm
Outside diameter
B
24
mm
Width
r (min.)
1.5
mm
Chamfer dimension
Basic Load Ratings
Cr
68500
N
Basic dynamic load rating
C0r
44000
N
Basic static load rating
Speeds
Grease
6000
min-1
Grease lubrication

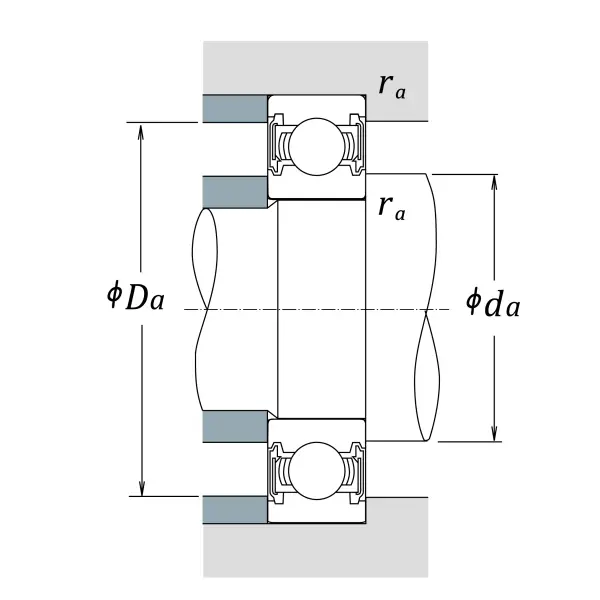

da (min.)
78
mm
Diameter of shaft abutment
da (max.)
84
mm
Diameter of shaft abutment
Da (max.)
117
mm
Diameter of housing abutment
ra (max.)
1.5
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
fo
14.5
Factor
