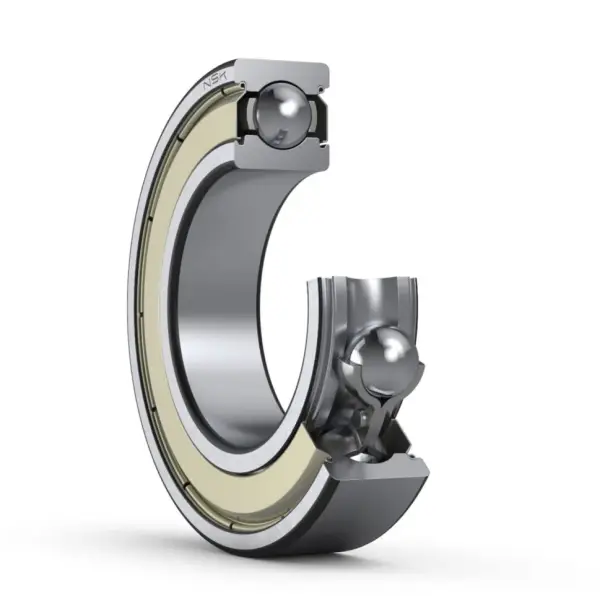

NSK 6230ZZS
Single-Row Deep Groove Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
6230ZZS

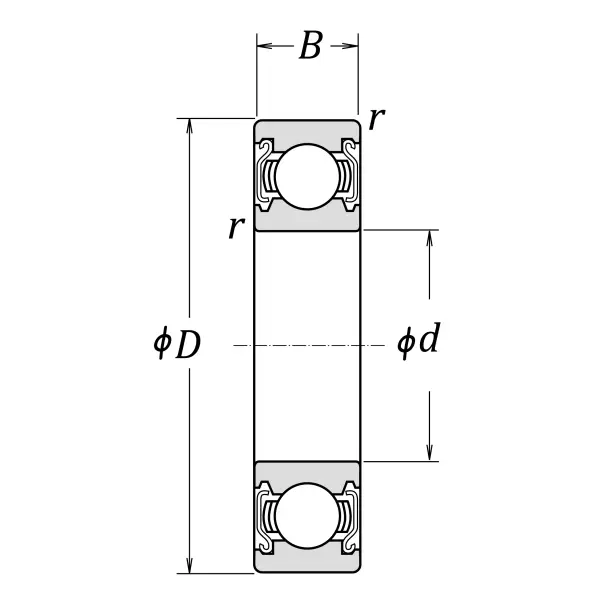

Boundary Dimensions
d
150
mm
Bore diameter
D
270
mm
Outside diameter
B
45
mm
Width
r (min.)
3
mm
Chamfer dimension
Basic Load Ratings
Cr
194000
N
Basic dynamic load rating
C0r
168000
N
Basic static load rating
Speeds
Grease
2000
min-1
Grease lubrication

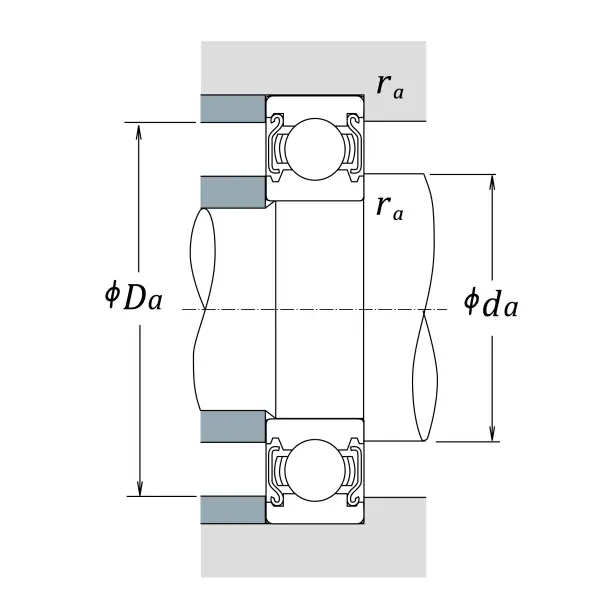

da (min.)
163
mm
Diameter of shaft abutment
da (max.)
186
mm
Diameter of shaft abutment
Da (max.)
257
mm
Diameter of housing abutment
ra (max.)
2.5
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
fo
15.1
Factor
