NSK 63/32VV

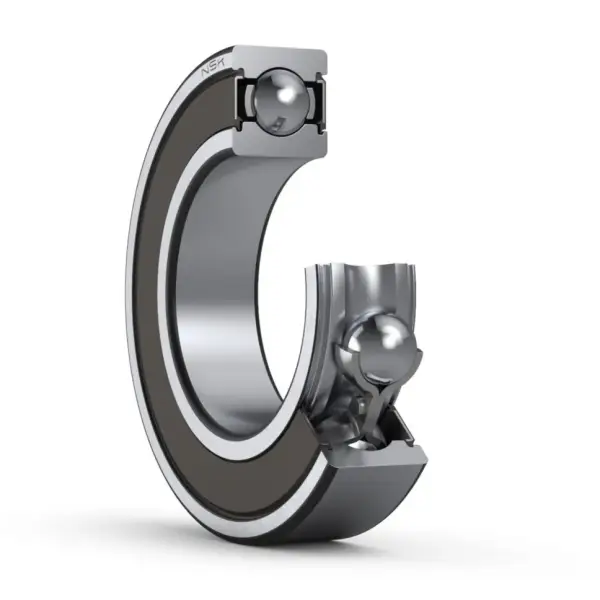

Single-Row Deep Groove Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
63/32VV

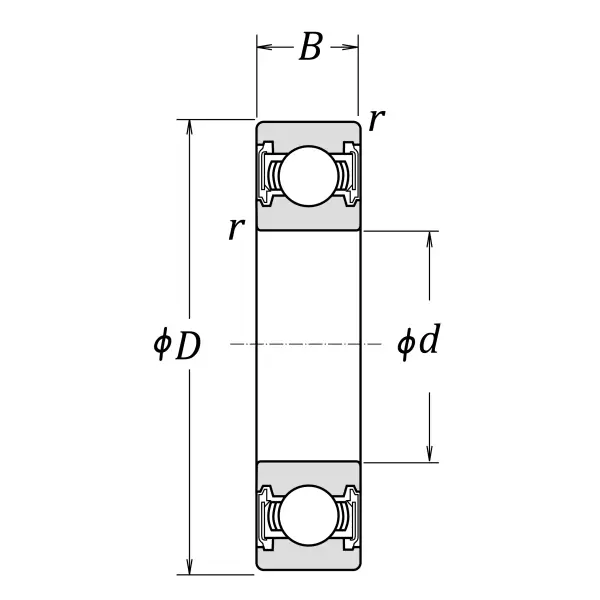

Boundary Dimensions
d
32
mm
Bore diameter
D
75
mm
Outside diameter
B
20
mm
Width
r (min.)
1.1
mm
Chamfer dimension
Basic Load Ratings
Cr
33000
N
Basic dynamic load rating
C0r
17000
N
Basic static load rating
Speeds
Grease
9000
min-1
Grease lubrication
da (min.)
38.5
mm
Diameter of shaft abutment
da (max.)
44.5
mm
Diameter of shaft abutment
Da (max.)
68.5
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet

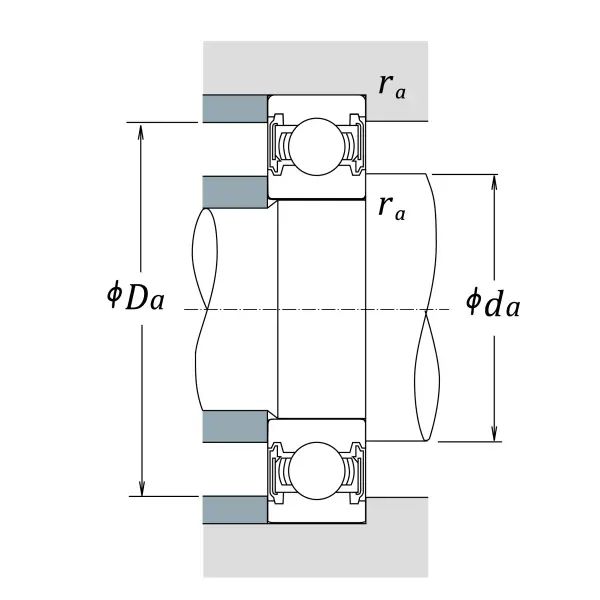

Abutment and Fillet Dimensions
fo
13.2
Factor
