NSK 6310N
Single-Row Deep Groove Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
6310N

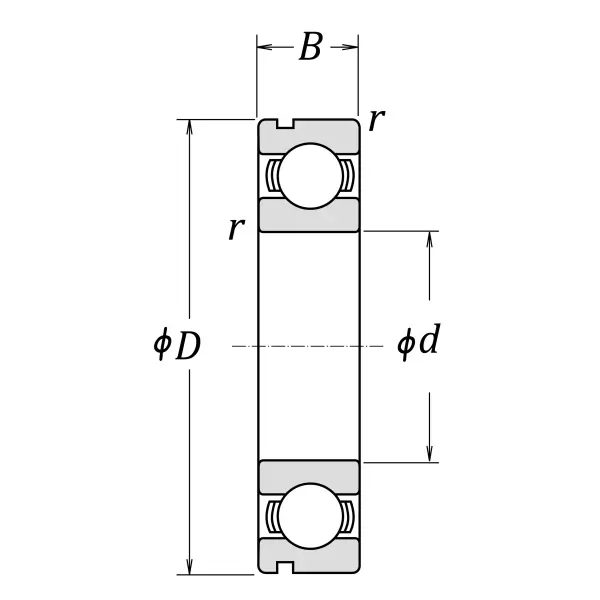

Boundary Dimensions
d
50
mm
Bore diameter
D
110
mm
Outside diameter
B
27
mm
Width
r (min.)
2
mm
Chamfer dimension
Basic Load Ratings
Cr
68000
N
Basic dynamic load rating
C0r
38500
N
Basic static load rating
Speeds
Grease
7100
min-1
Grease lubrication
Oil (Oil-bath)
8500
min-1
Oil-bath lubrication
a (min.)
3.28
mm
Distance outer ring from side face to snap ring groove
b (min.)
2.7
mm
Width of snap ring groove
D1 (max.)
106.81
mm
Diameter of snap ring groove
ro (max.)
0.6
mm
Bottom radius of snap ring groove
rN
0.5
mm
Chamfer dimension
Dimensions
da (min.)
59
mm
Diameter of shaft abutment
da (max.)
68
mm
Diameter of shaft abutment
Da (max.)
101
mm
Diameter of housing abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
Dx (min.)
118
mm
Diameter of snap ring recess in the housing
Cy (max.)
5.4
mm
Distance from outer ring side face to snap ring back face
