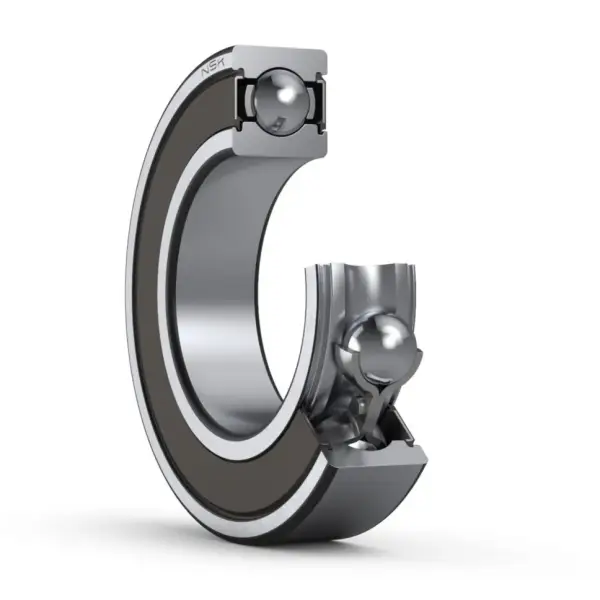

NSK 6315VV
Single-Row Deep Groove Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
6315VV

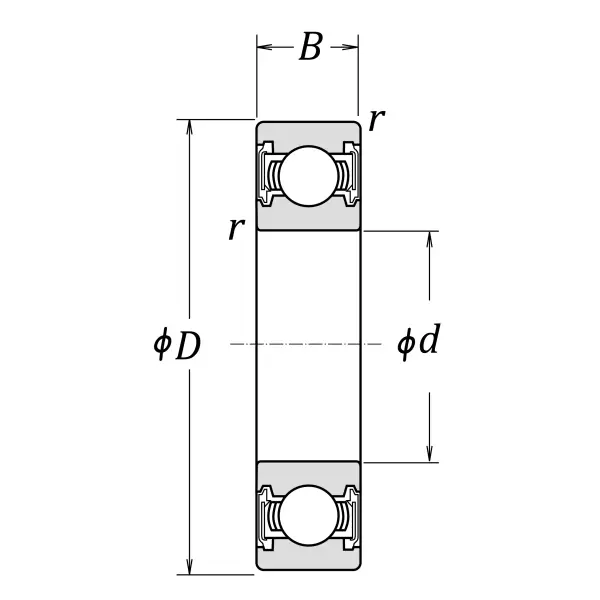

Boundary Dimensions
d
75
mm
Bore diameter
D
160
mm
Outside diameter
B
37
mm
Width
r (min.)
2.1
mm
Chamfer dimension
Basic Load Ratings
Cr
125000
N
Basic dynamic load rating
C0r
77000
N
Basic static load rating
Speeds
Grease
4800
min-1
Grease lubrication

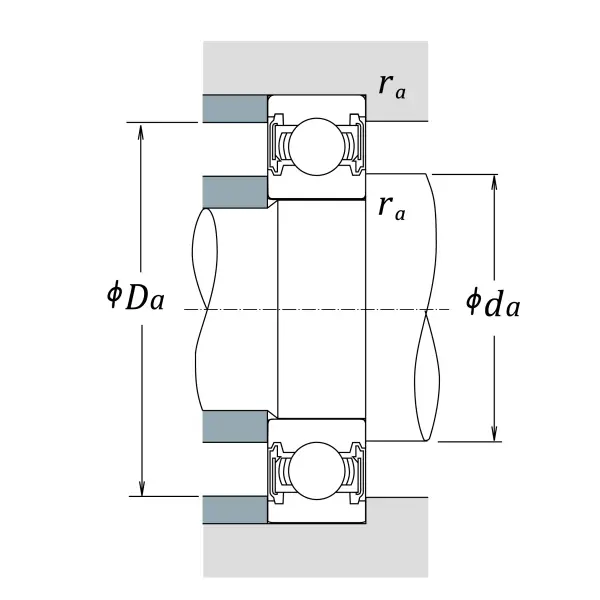

da (min.)
86
mm
Diameter of shaft abutment
da (max.)
98.5
mm
Diameter of shaft abutment
Da (max.)
149
mm
Diameter of housing abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
fo
13.2
Factor
