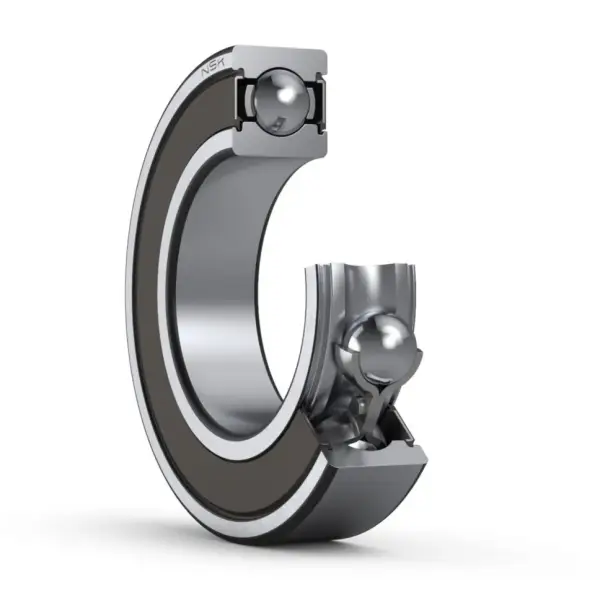

NSK 6317VV
Single-Row Deep Groove Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
6317VV

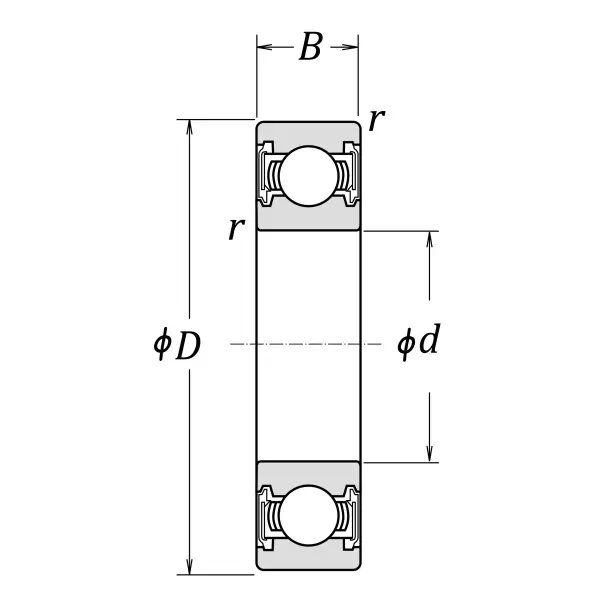

Boundary Dimensions
d
85
mm
Bore diameter
D
180
mm
Outside diameter
B
41
mm
Width
r (min.)
3
mm
Chamfer dimension
Basic Load Ratings
Cr
146000
N
Basic dynamic load rating
C0r
97000
N
Basic static load rating
Speeds
Grease
4300
min-1
Grease lubrication
da (min.)
98
mm
Diameter of shaft abutment
da (max.)
110.5
mm
Diameter of shaft abutment
Da (max.)
167
mm
Diameter of housing abutment
ra (max.)
2.5
mm
Radius of shaft or housing fillet

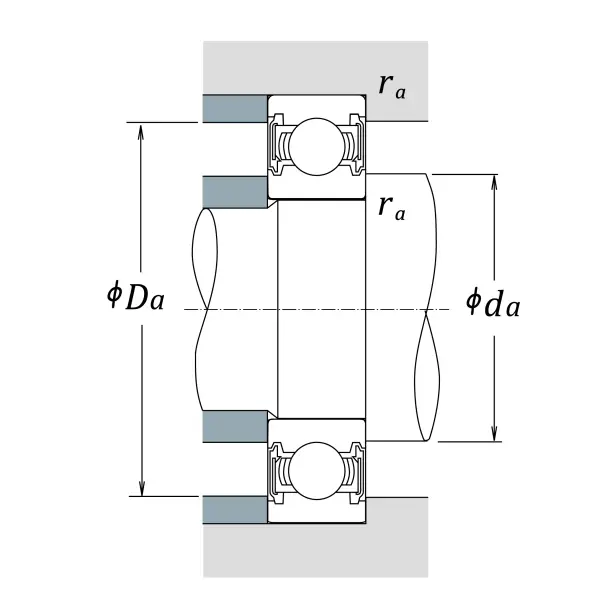

Abutment and Fillet Dimensions
fo
13.3
Factor
