NSK 6320VV
Single-Row Deep Groove Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
6320VV

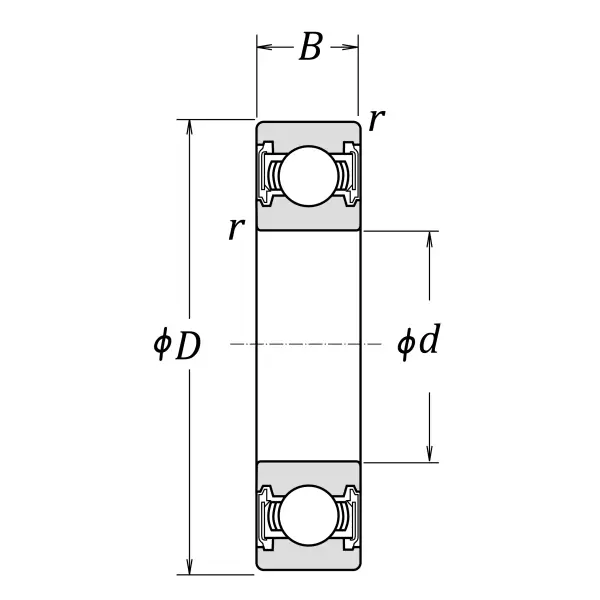

Boundary Dimensions
d
100
mm
Bore diameter
D
215
mm
Outside diameter
B
47
mm
Width
r (min.)
3
mm
Chamfer dimension
Basic Load Ratings
Cr
191000
N
Basic dynamic load rating
C0r
141000
N
Basic static load rating
Speeds
Grease
2800
min-1
Grease lubrication
da (min.)
113
mm
Diameter of shaft abutment
da (max.)
133
mm
Diameter of shaft abutment
Da (max.)
202
mm
Diameter of housing abutment
ra (max.)
2.5
mm
Radius of shaft or housing fillet

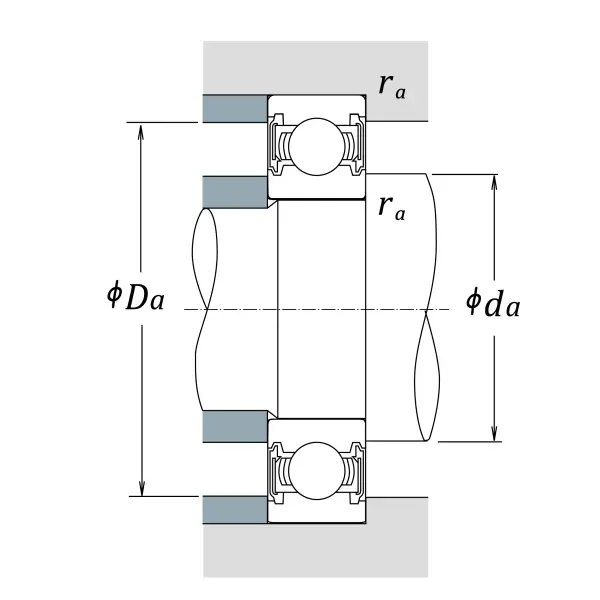

Abutment and Fillet Dimensions
fo
13.2
Factor
