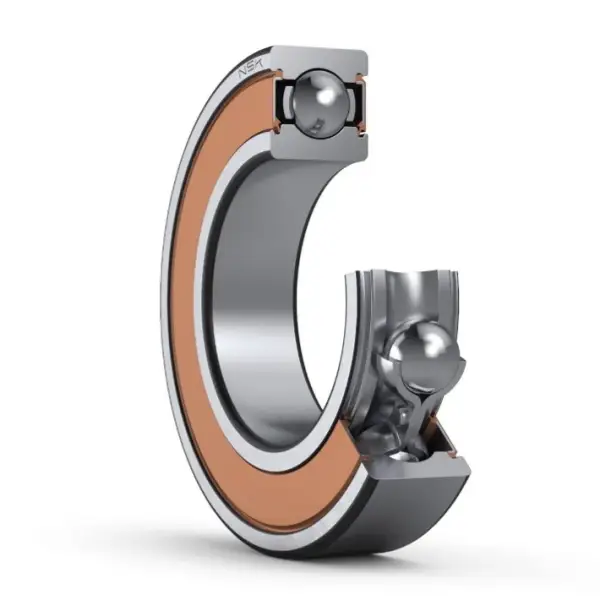

NSK 6324DDU
Single-Row Deep Groove Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
6324DDU

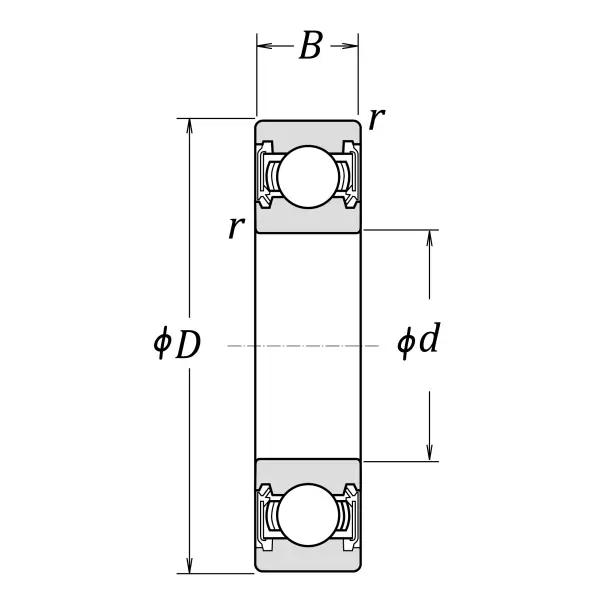

Boundary Dimensions
d
120
mm
Bore diameter
D
260
mm
Outside diameter
B
55
mm
Width
r (min.)
3
mm
Chamfer dimension
Basic Load Ratings
Cr
227000
N
Basic dynamic load rating
C0r
185000
N
Basic static load rating
Speeds
Grease
1800
min-1
Grease lubrication

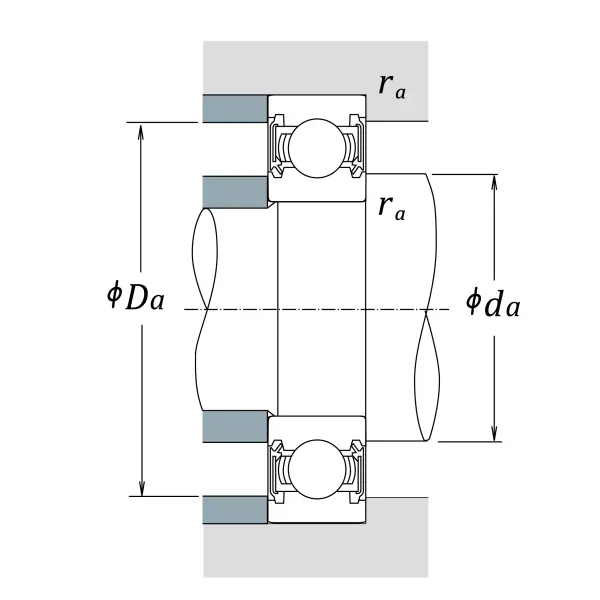

da (min.)
133
mm
Diameter of shaft abutment
da (max.)
161
mm
Diameter of shaft abutment
Da (max.)
247
mm
Diameter of housing abutment
ra (max.)
2.5
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
fo
13.5
Factor
