NSK 6801DD

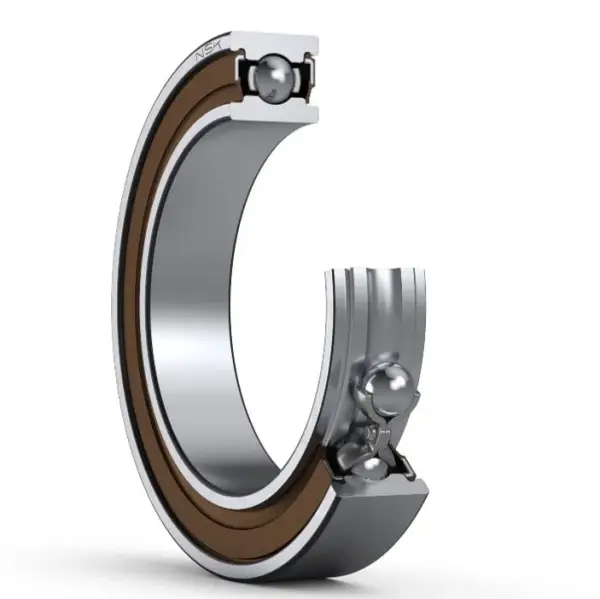

Single-Row Deep Groove Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
6801DD
Boundary Dimensions
d
12
mm
Bore diameter
D
21
mm
Outside diameter
B
5
mm
Width
r (min.)
0.3
mm
Chamfer dimension
Basic Load Ratings
Cr
2110
N
Basic dynamic load rating
C0r
1040
N
Basic static load rating
Speeds
Grease
20000
min-1
Grease lubrication
da (min.)
14
mm
Diameter of shaft abutment
da (max.)
14
mm
Diameter of shaft abutment
Da (max.)
19
mm
Diameter of housing abutment
ra (max.)
0.3
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
fo
15.3
Factor
