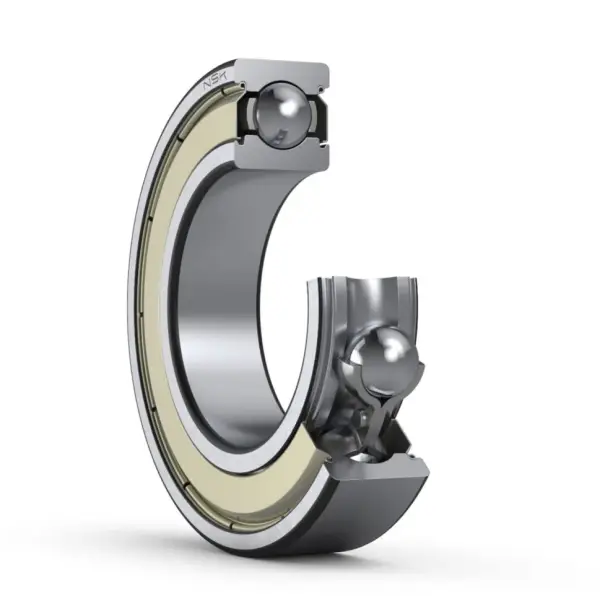

NSK 6814ZZ
Single-Row Deep Groove Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
6814ZZ

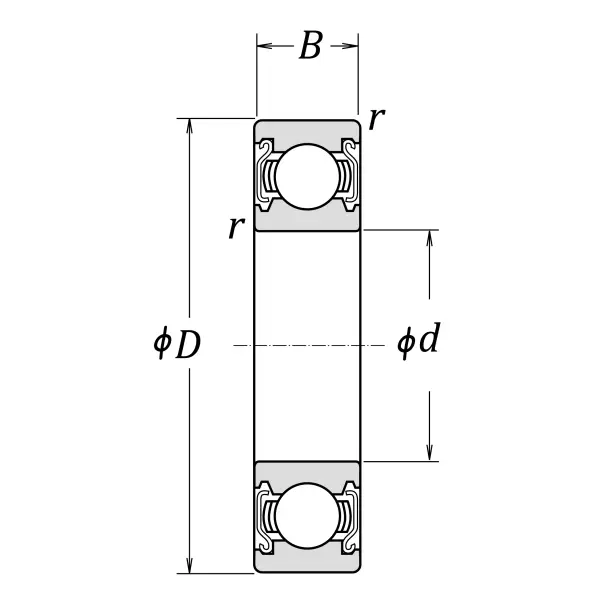

Boundary Dimensions
d
70
mm
Bore diameter
D
90
mm
Outside diameter
B
10
mm
Width
r (min.)
0.6
mm
Chamfer dimension
Basic Load Ratings
Cr
13300
N
Basic dynamic load rating
C0r
12700
N
Basic static load rating
Speeds
Grease
6700
min-1
Grease lubrication

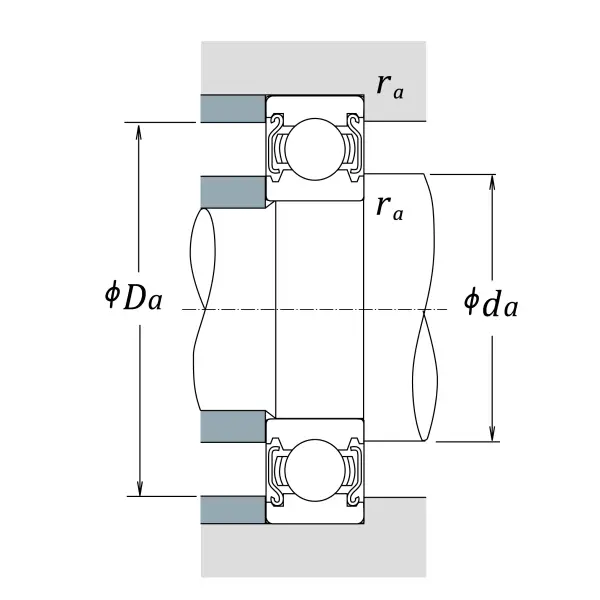

da (min.)
74
mm
Diameter of shaft abutment
da (max.)
74.5
mm
Diameter of shaft abutment
Da (max.)
86
mm
Diameter of housing abutment
ra (max.)
0.6
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
fo
17.2
Factor
