NSK 6816N
Single-Row Deep Groove Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
6816N

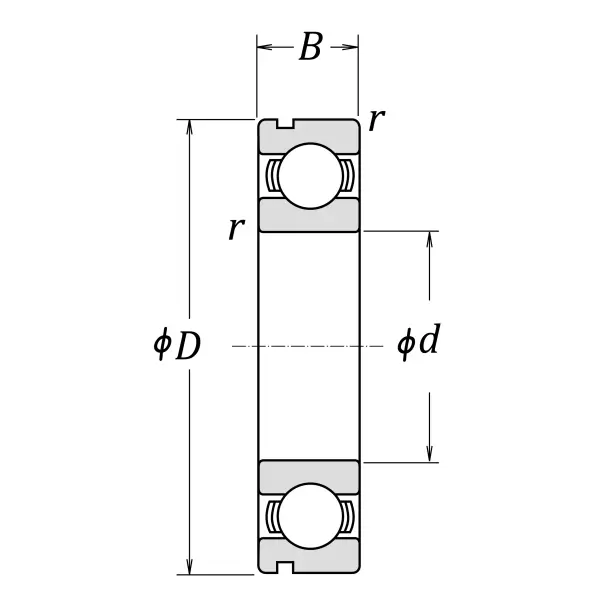

Boundary Dimensions
d
80
mm
Bore diameter
D
100
mm
Outside diameter
B
10
mm
Width
r (min.)
0.6
mm
Chamfer dimension
Basic Load Ratings
Cr
13900
N
Basic dynamic load rating
C0r
14500
N
Basic static load rating
Speeds
Grease
6000
min-1
Grease lubrication
Oil (Oil-bath)
7100
min-1
Oil-bath lubrication
a (min.)
1.7
mm
Distance outer ring from side face to snap ring groove
b (min.)
1.3
mm
Width of snap ring groove
D1 (max.)
97.9
mm
Diameter of snap ring groove
ro (max.)
0.4
mm
Bottom radius of snap ring groove
rN
0.5
mm
Chamfer dimension
Dimensions
da (min.)
84
mm
Diameter of shaft abutment
da (max.)
84.5
mm
Diameter of shaft abutment
Da (max.)
96
mm
Diameter of housing abutment
ra (max.)
0.6
mm
Radius of shaft or housing fillet
Dx (min.)
106
mm
Diameter of snap ring recess in the housing
Cy (max.)
2.5
mm
Distance from outer ring side face to snap ring back face
