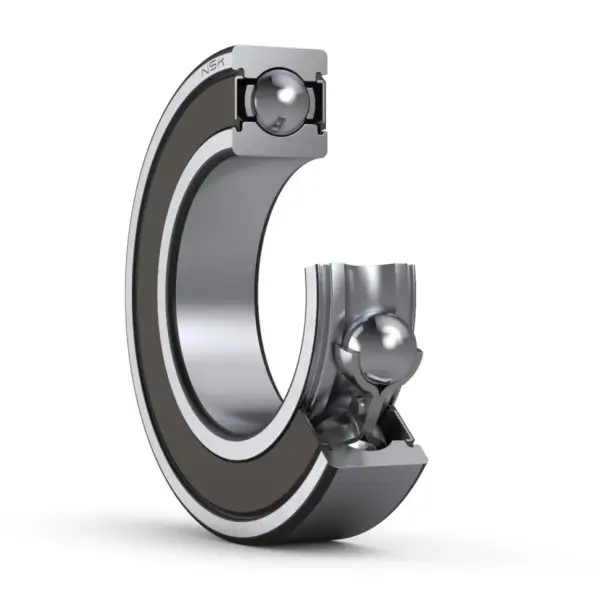

NSK 6816VV
Single-Row Deep Groove Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
6816VV

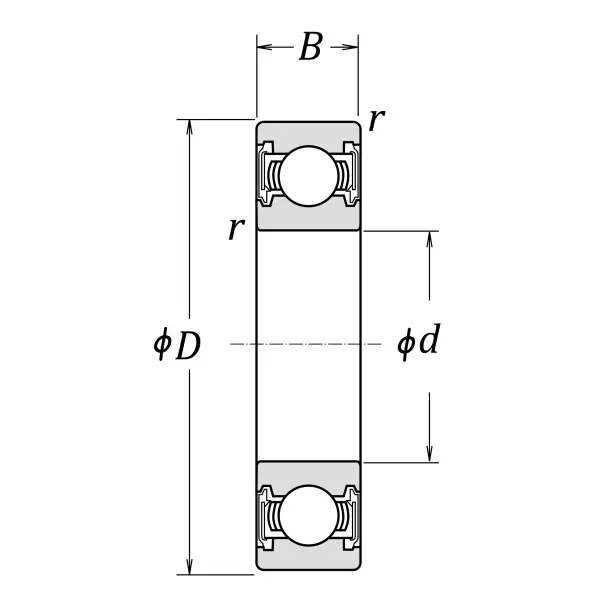

Boundary Dimensions
d
80
mm
Bore diameter
D
100
mm
Outside diameter
B
10
mm
Width
r (min.)
0.6
mm
Chamfer dimension
Basic Load Ratings
Cr
13900
N
Basic dynamic load rating
C0r
14500
N
Basic static load rating
Speeds
Grease
6000
min-1
Grease lubrication

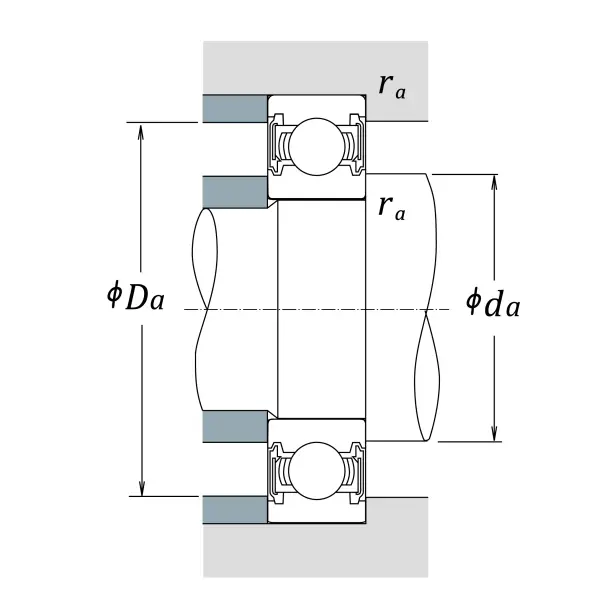

da (min.)
84
mm
Diameter of shaft abutment
da (max.)
84.5
mm
Diameter of shaft abutment
Da (max.)
96
mm
Diameter of housing abutment
ra (max.)
0.6
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
fo
17.4
Factor
