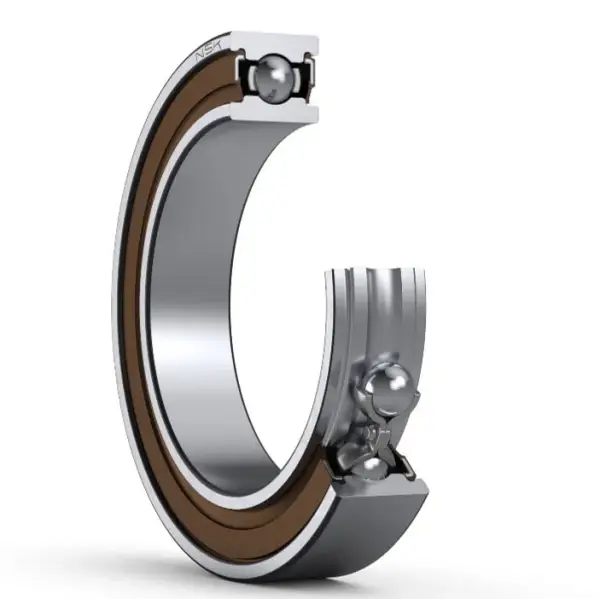

NSK 6819DD
Single-Row Deep Groove Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
6819DD
Boundary Dimensions
d
95
mm
Bore diameter
D
120
mm
Outside diameter
B
13
mm
Width
r (min.)
1
mm
Chamfer dimension
Basic Load Ratings
Cr
21200
N
Basic dynamic load rating
C0r
22000
N
Basic static load rating
Speeds
Grease
2800
min-1
Grease lubrication
da (min.)
100
mm
Diameter of shaft abutment
da (max.)
101.5
mm
Diameter of shaft abutment
Da (max.)
115
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
fo
17.2
Factor
