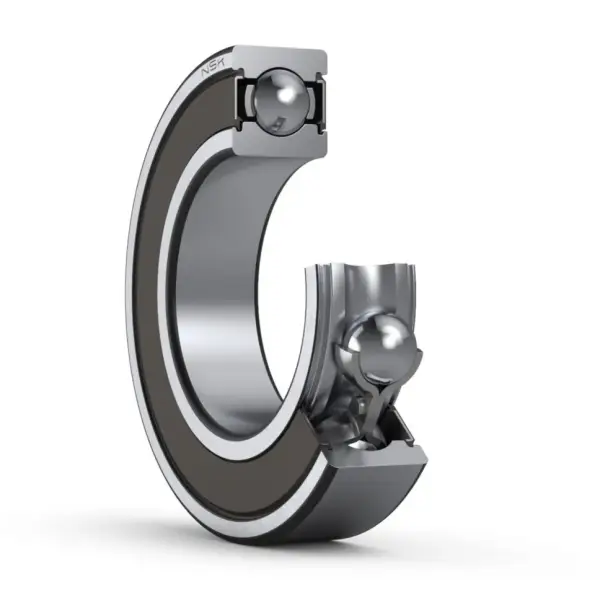

NSK 6824VV
Single-Row Deep Groove Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
6824VV

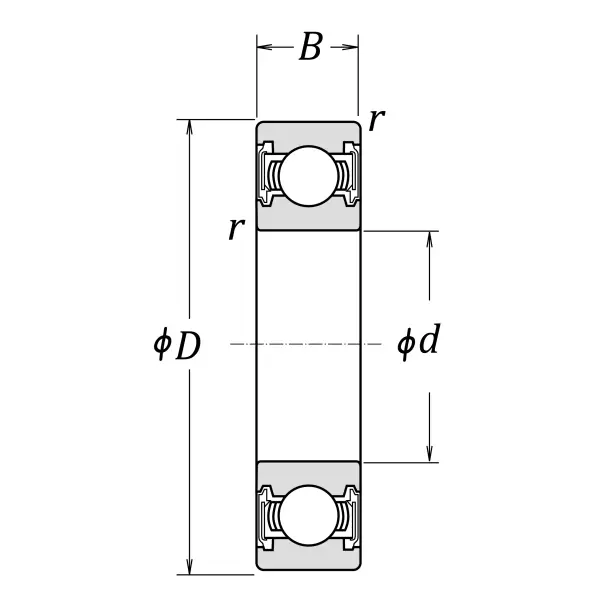

Boundary Dimensions
d
120
mm
Bore diameter
D
150
mm
Outside diameter
B
16
mm
Width
r (min.)
1
mm
Chamfer dimension
Basic Load Ratings
Cr
32000
N
Basic dynamic load rating
C0r
35500
N
Basic static load rating
Speeds
Grease
4000
min-1
Grease lubrication

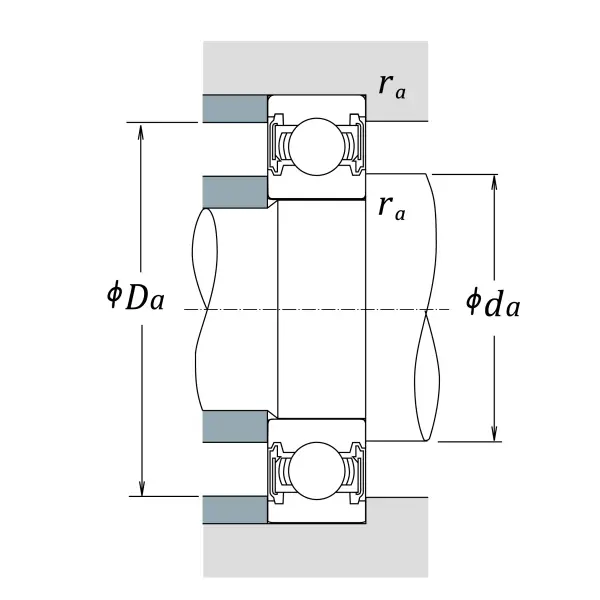

da (min.)
125
mm
Diameter of shaft abutment
da (max.)
127
mm
Diameter of shaft abutment
Da (max.)
145
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
fo
17.3
Factor
