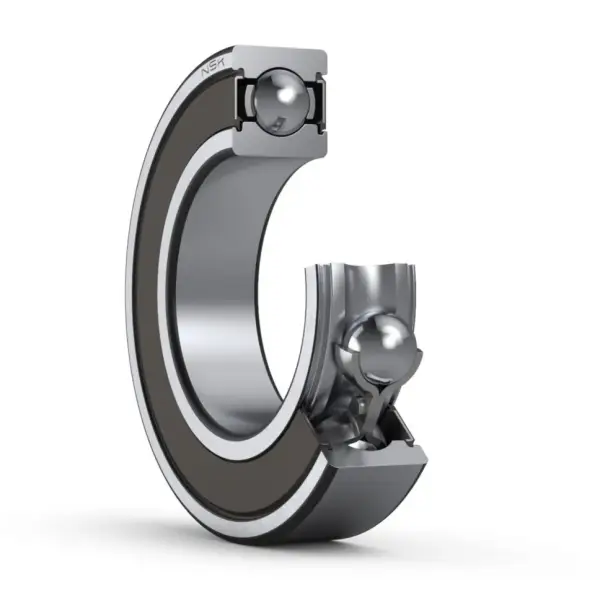

NSK 6836VV
Single-Row Deep Groove Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
6836VV

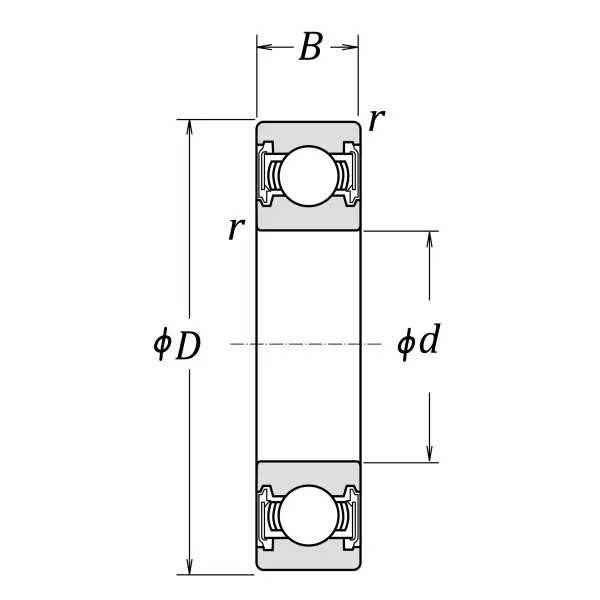

Boundary Dimensions
d
180
mm
Bore diameter
D
225
mm
Outside diameter
B
22
mm
Width
r (min.)
1.1
mm
Chamfer dimension
Basic Load Ratings
Cr
66500
N
Basic dynamic load rating
C0r
78500
N
Basic static load rating
Speeds
Grease
2400
min-1
Grease lubrication

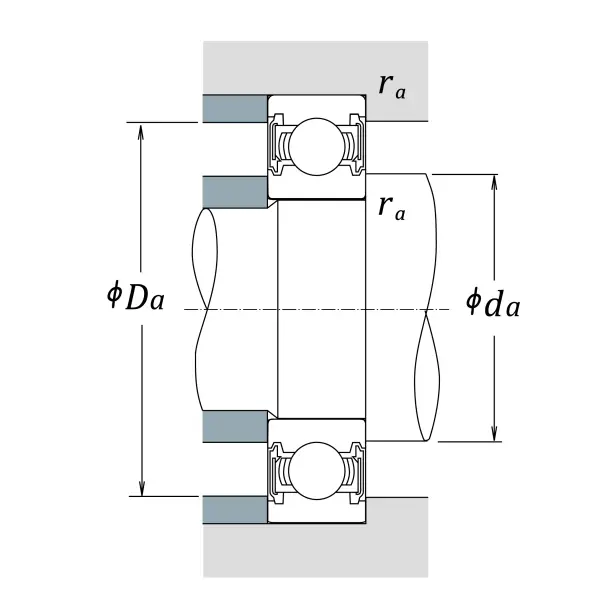

da (min.)
186.5
mm
Diameter of shaft abutment
da (max.)
192
mm
Diameter of shaft abutment
Da (max.)
218.5
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
fo
17.2
Factor
