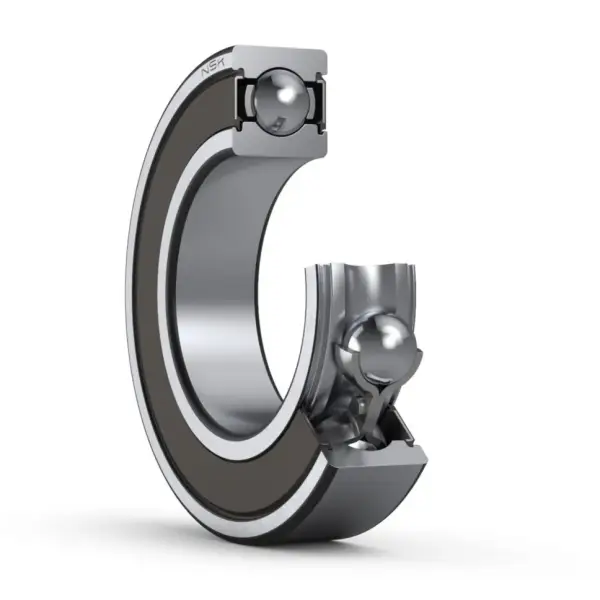

NSK 6838VV
Single-Row Deep Groove Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
6838VV

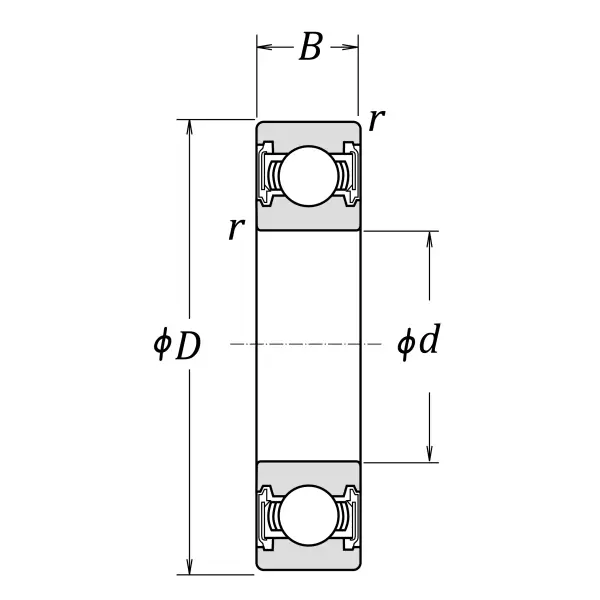

Boundary Dimensions
d
190
mm
Bore diameter
D
240
mm
Outside diameter
B
24
mm
Width
r (min.)
1.5
mm
Chamfer dimension
Basic Load Ratings
Cr
80500
N
Basic dynamic load rating
C0r
93500
N
Basic static load rating
Speeds
Grease
2200
min-1
Grease lubrication

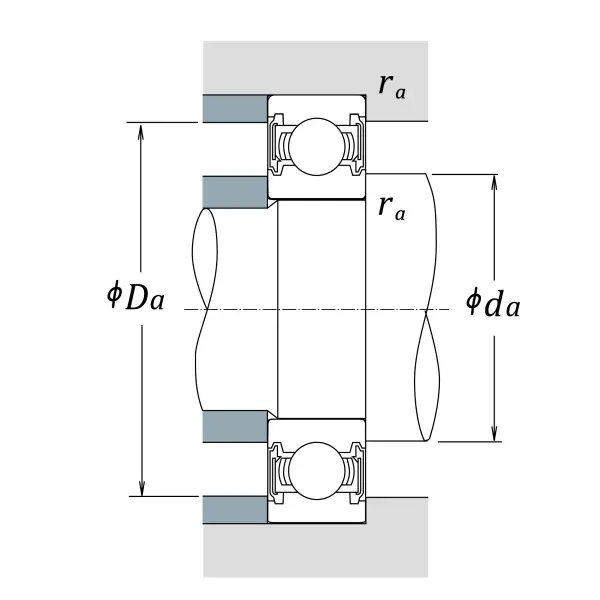

da (min.)
198
mm
Diameter of shaft abutment
da (max.)
202.5
mm
Diameter of shaft abutment
Da (max.)
232
mm
Diameter of housing abutment
ra (max.)
1.5
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
fo
17.1
Factor
