NSK 69/530

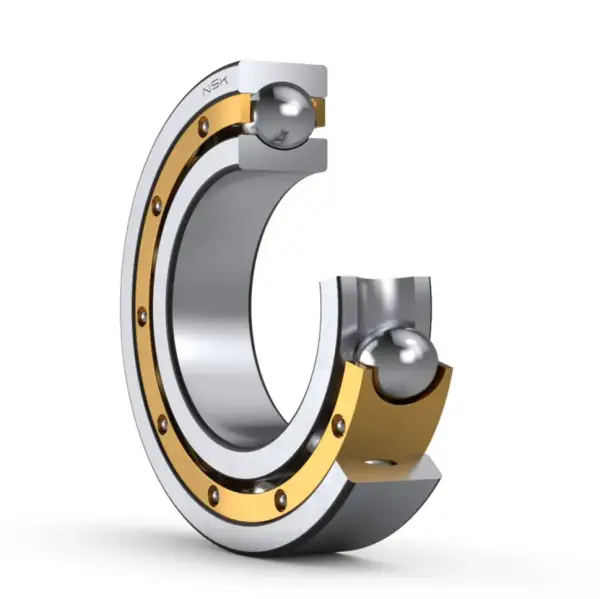

Single-Row Deep Groove Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
69/530
Boundary Dimensions
d
530
mm
Bore diameter
D
710
mm
Outside diameter
B
82
mm
Width
r (min.)
5
mm
Chamfer dimension
Basic Load Ratings
Cr
500000
N
Basic dynamic load rating
C0r
870000
N
Basic static load rating
Speeds
Grease
670
min-1
Grease lubrication
Oil (Oil-bath)
800
min-1
Oil-bath lubrication
da (min.)
550
mm
Diameter of shaft abutment
Da (max.)
690
mm
Diameter of housing abutment
ra (max.)
4
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
fo
16.8
Factor
