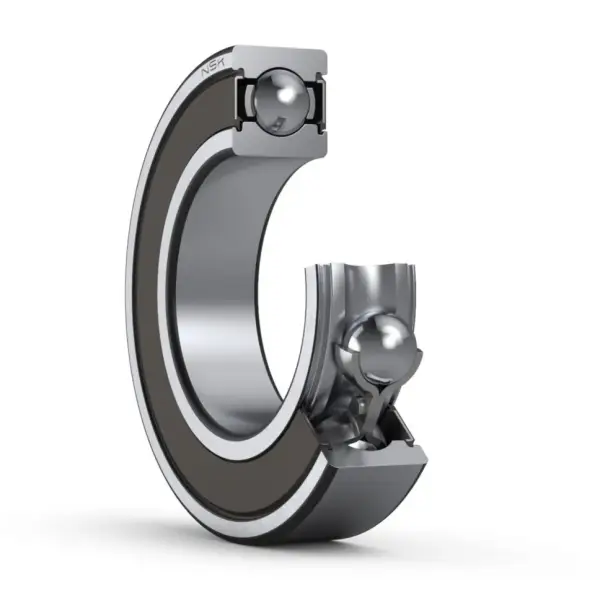

NSK 6900VV
Single-Row Deep Groove Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
6900VV

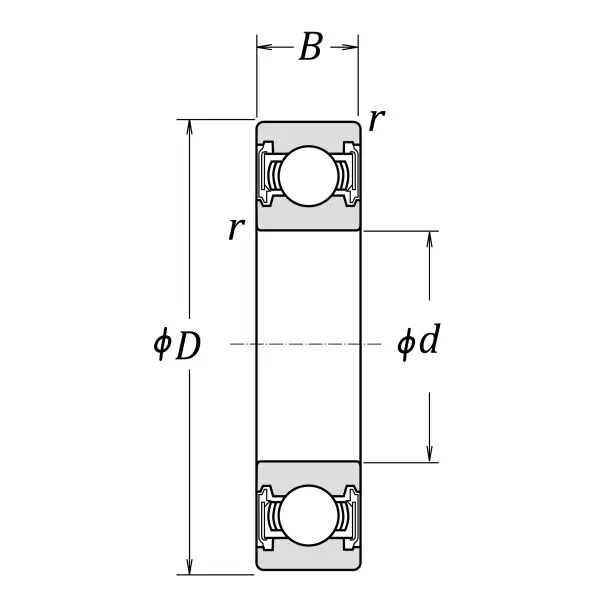

Boundary Dimensions
d
10
mm
Bore diameter
D
22
mm
Outside diameter
B
6
mm
Width
r (min.)
0.3
mm
Chamfer dimension
Basic Load Ratings
Cr
2970
N
Basic dynamic load rating
C0r
1270
N
Basic static load rating
Speeds
Grease
32000
min-1
Grease lubrication

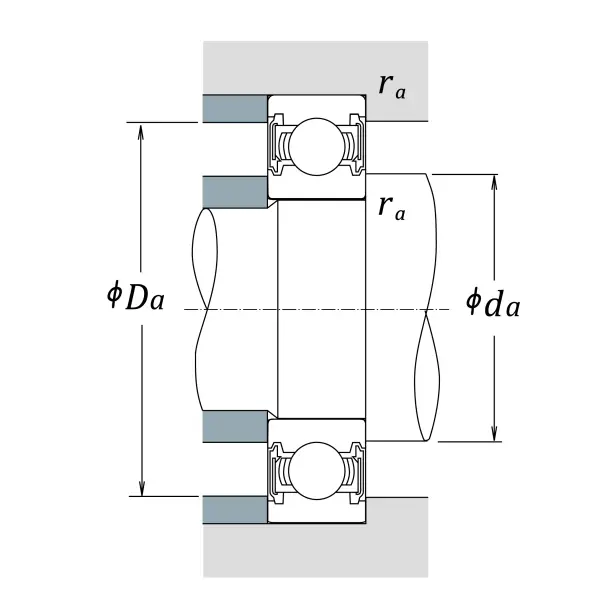

da (min.)
12
mm
Diameter of shaft abutment
da (max.)
12.5
mm
Diameter of shaft abutment
Da (max.)
20
mm
Diameter of housing abutment
ra (max.)
0.3
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
fo
14
Factor
