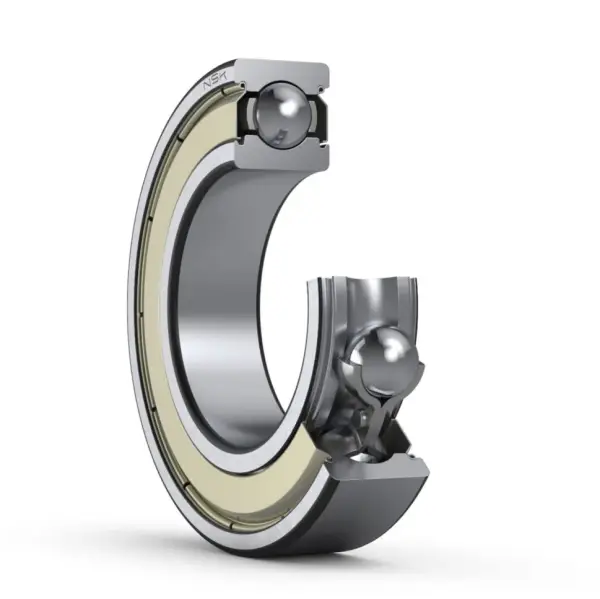

NSK 6910ZZ
Single-Row Deep Groove Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
6910ZZ

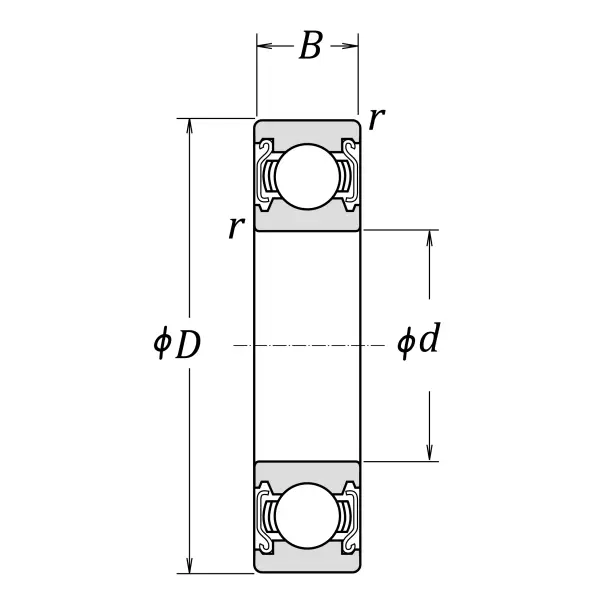

Boundary Dimensions
d
50
mm
Bore diameter
D
72
mm
Outside diameter
B
12
mm
Width
r (min.)
0.6
mm
Chamfer dimension
Basic Load Ratings
Cr
16000
N
Basic dynamic load rating
C0r
11700
N
Basic static load rating
Speeds
Grease
9000
min-1
Grease lubrication

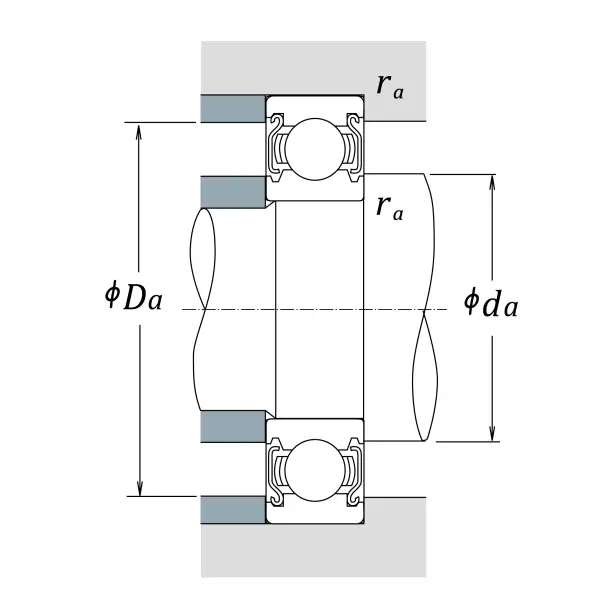

da (min.)
54
mm
Diameter of shaft abutment
da (max.)
55
mm
Diameter of shaft abutment
Da (max.)
68
mm
Diameter of housing abutment
ra (max.)
0.6
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
fo
16.1
Factor
