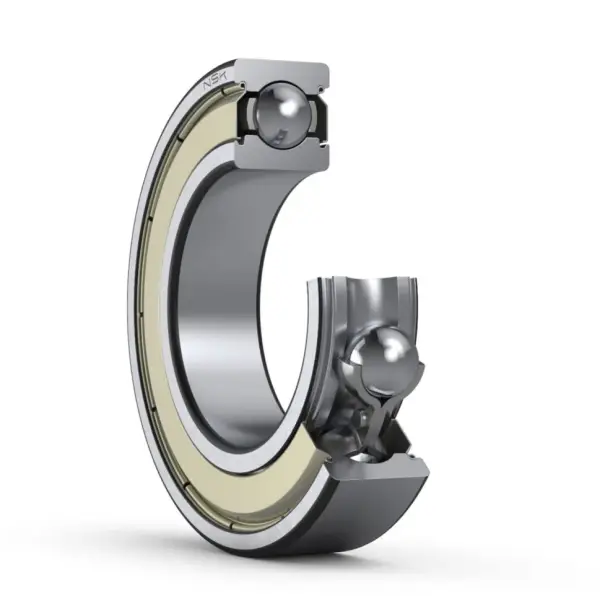

NSK 6911ZZ
Single-Row Deep Groove Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
6911ZZ

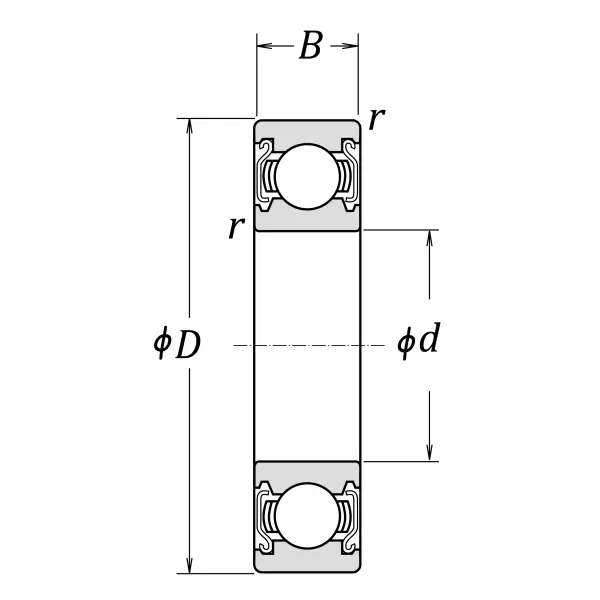

Boundary Dimensions
d
55
mm
Bore diameter
D
80
mm
Outside diameter
B
13
mm
Width
r (min.)
1
mm
Chamfer dimension
Basic Load Ratings
Cr
17600
N
Basic dynamic load rating
C0r
13300
N
Basic static load rating
Speeds
Grease
8000
min-1
Grease lubrication
da (min.)
60
mm
Diameter of shaft abutment
da (max.)
61.5
mm
Diameter of shaft abutment
Da (max.)
75
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet

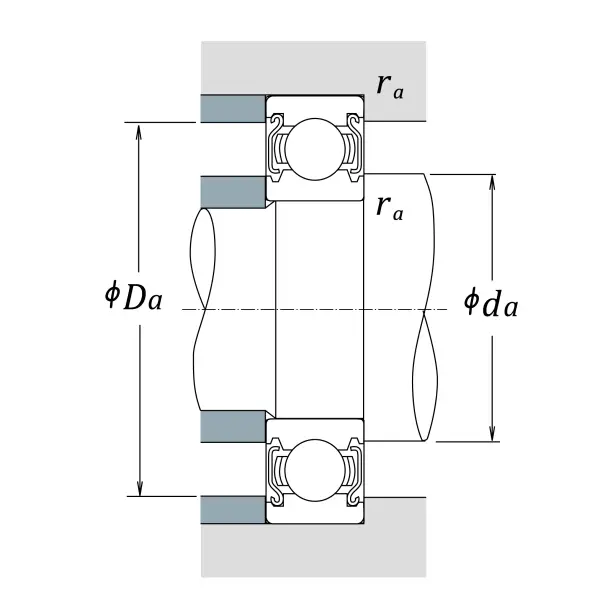

Abutment and Fillet Dimensions
fo
16.2
Factor
