NSK 6914VV

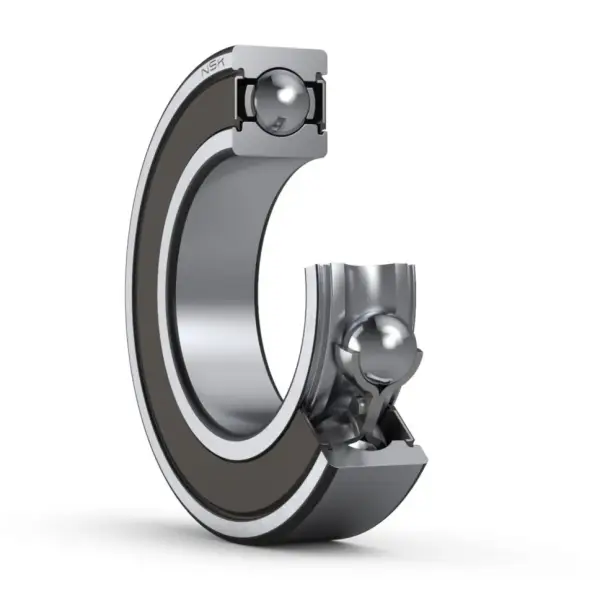

Single-Row Deep Groove Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
6914VV

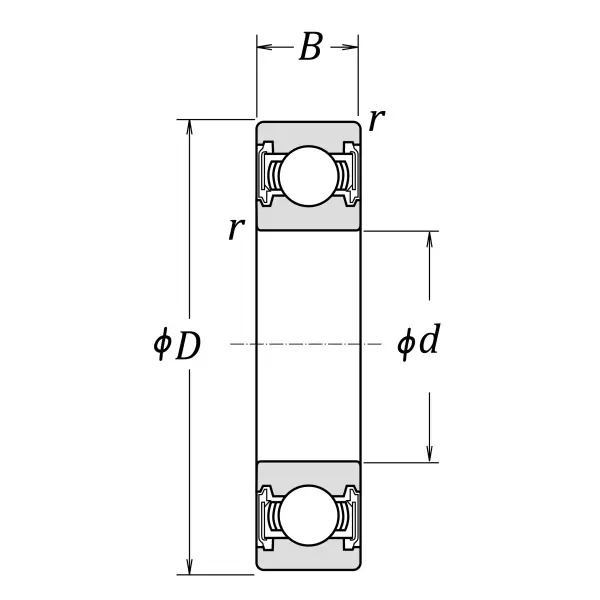

Boundary Dimensions
d
70
mm
Bore diameter
D
100
mm
Outside diameter
B
16
mm
Width
r (min.)
1
mm
Chamfer dimension
Basic Load Ratings
Cr
26100
N
Basic dynamic load rating
C0r
21200
N
Basic static load rating
Speeds
Grease
6300
min-1
Grease lubrication
da (min.)
75
mm
Diameter of shaft abutment
da (max.)
77.5
mm
Diameter of shaft abutment
Da (max.)
95
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet

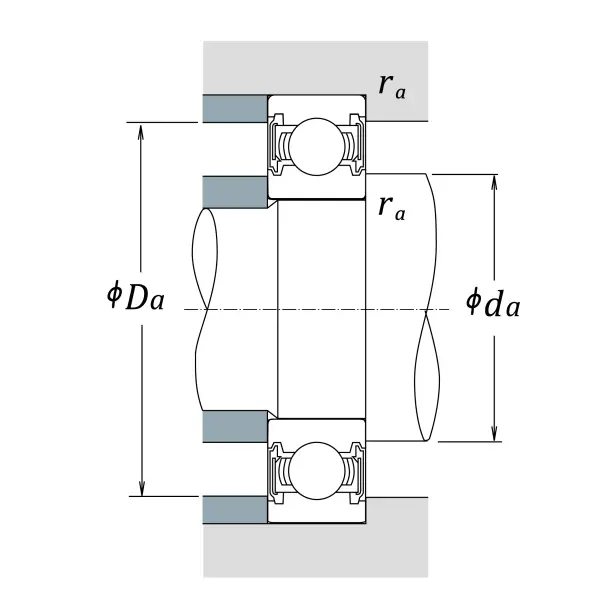

Abutment and Fillet Dimensions
fo
16.3
Factor
