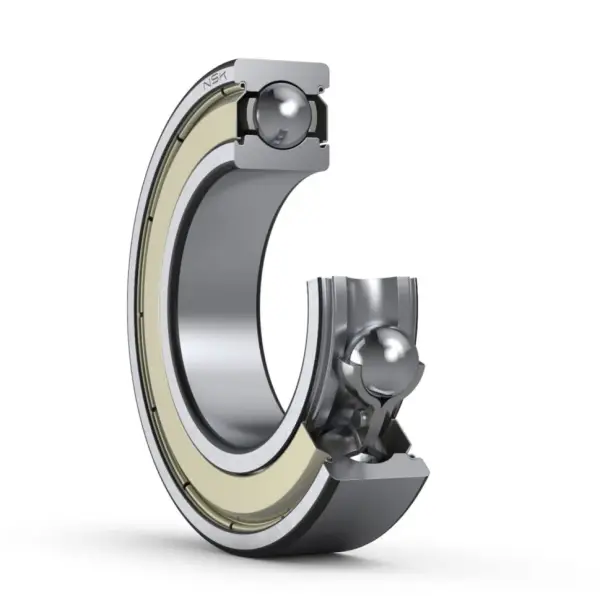

NSK 6919ZZ
Single-Row Deep Groove Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
6919ZZ

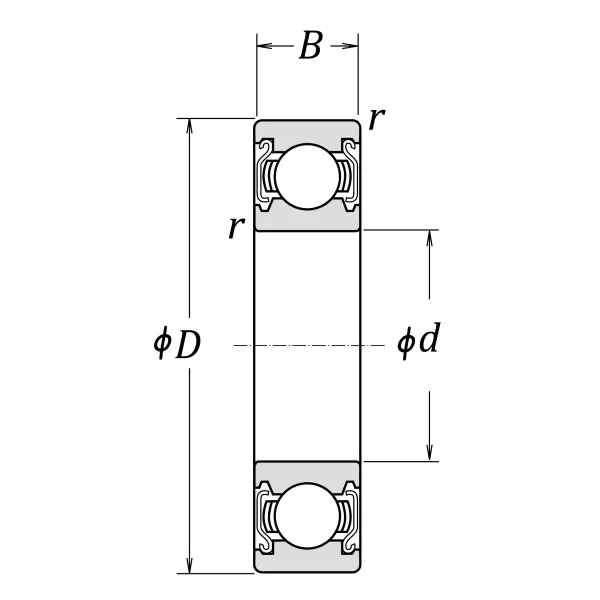

Boundary Dimensions
d
95
mm
Bore diameter
D
130
mm
Outside diameter
B
18
mm
Width
r (min.)
1.1
mm
Chamfer dimension
Basic Load Ratings
Cr
37000
N
Basic dynamic load rating
C0r
33500
N
Basic static load rating
Speeds
Grease
4800
min-1
Grease lubrication

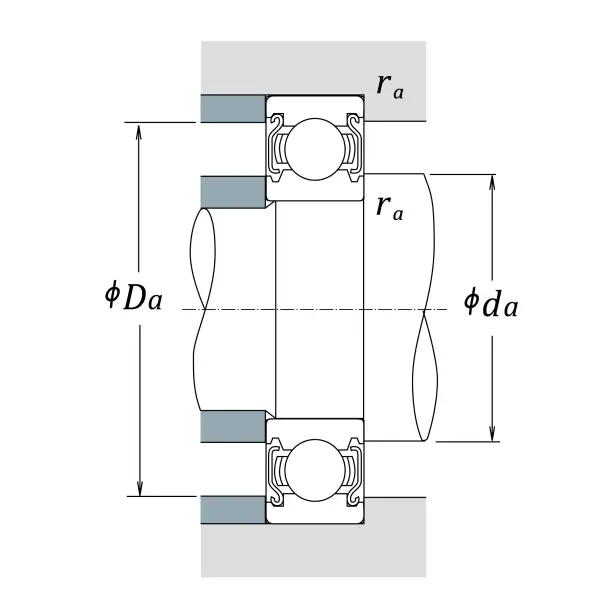

da (min.)
101.5
mm
Diameter of shaft abutment
da (max.)
103.5
mm
Diameter of shaft abutment
Da (max.)
123.5
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
fo
16.6
Factor
