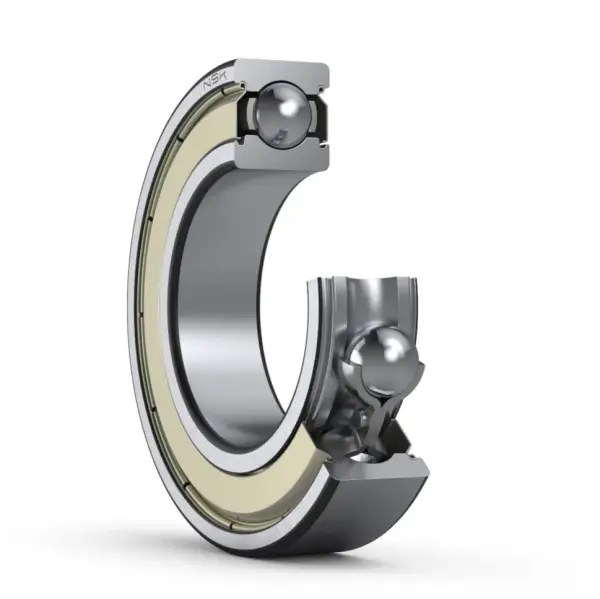

NSK 6920ZZ
Single-Row Deep Groove Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
6920ZZ

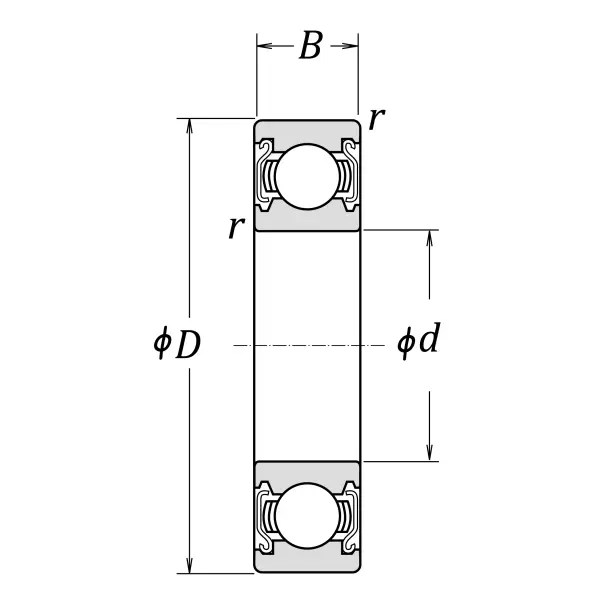

Boundary Dimensions
d
100
mm
Bore diameter
D
140
mm
Outside diameter
B
20
mm
Width
r (min.)
1.1
mm
Chamfer dimension
Basic Load Ratings
Cr
47000
N
Basic dynamic load rating
C0r
42000
N
Basic static load rating
Speeds
Grease
4500
min-1
Grease lubrication
da (min.)
106.5
mm
Diameter of shaft abutment
da (max.)
111
mm
Diameter of shaft abutment
Da (max.)
133.5
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet

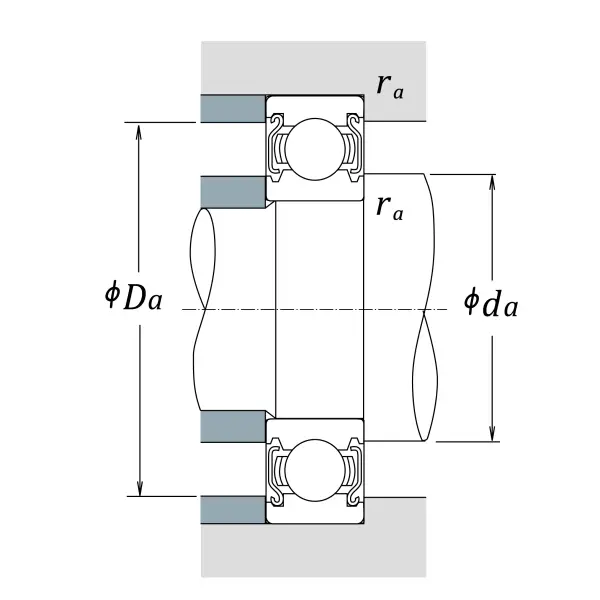

Abutment and Fillet Dimensions
fo
16.4
Factor
