NSK 6928VV
Single-Row Deep Groove Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
6928VV

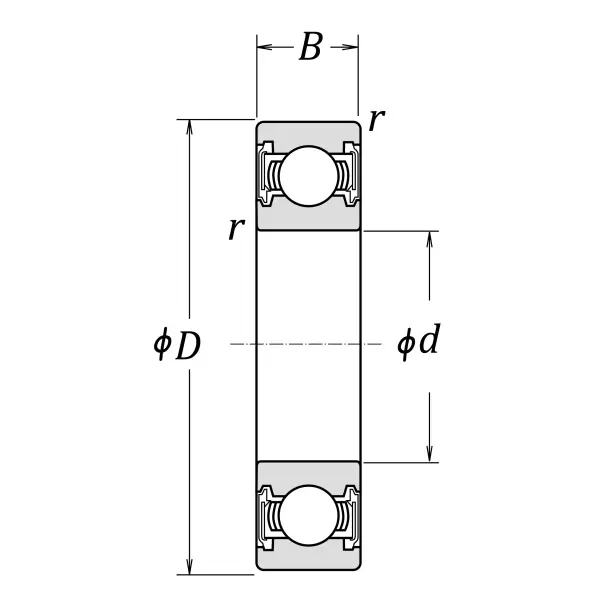

Boundary Dimensions
d
140
mm
Bore diameter
D
190
mm
Outside diameter
B
24
mm
Width
r (min.)
1.5
mm
Chamfer dimension
Basic Load Ratings
Cr
73500
N
Basic dynamic load rating
C0r
72000
N
Basic static load rating
Speeds
Grease
3200
min-1
Grease lubrication
da (min.)
148
mm
Diameter of shaft abutment
da (max.)
153.5
mm
Diameter of shaft abutment
Da (max.)
182
mm
Diameter of housing abutment
ra (max.)
1.5
mm
Radius of shaft or housing fillet

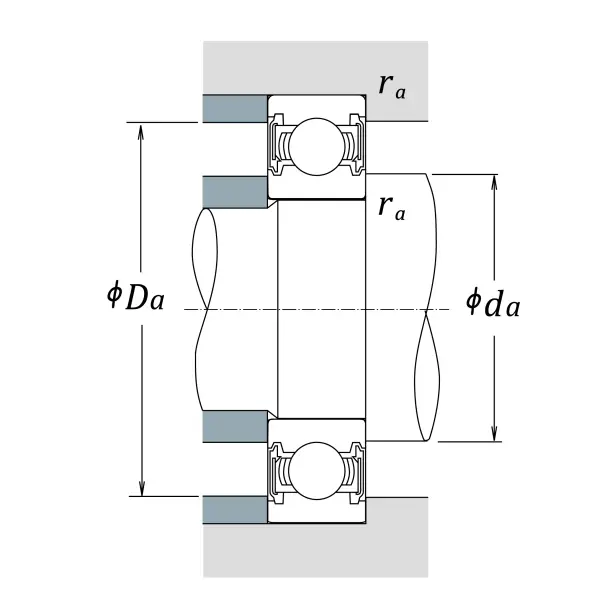

Abutment and Fillet Dimensions
fo
16.6
Factor
