NSK 699
Extra Small Ball Bearings and Miniature Ball Bearings Metric Series
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
699

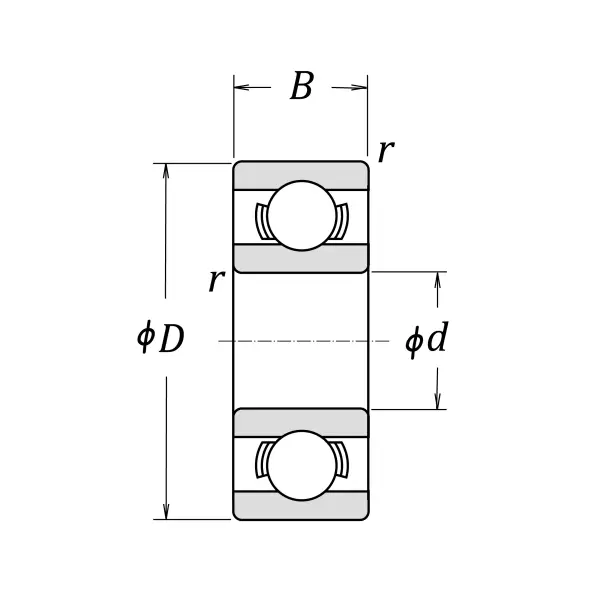

Boundary Dimensions
d
9
mm
Bore diameter
D
20
mm
Outside diameter
B
6
mm
Width
r (min.)
0.3
mm
Chamfer dimension
Basic Load Ratings
Cr
1890
N
Basic dynamic load rating
C0r
840
N
Basic static load rating
Speeds
Grease
34000
min-1
Grease lubrication
Oil (Oil-bath)
40000
min-1
Oil-bath lubrication

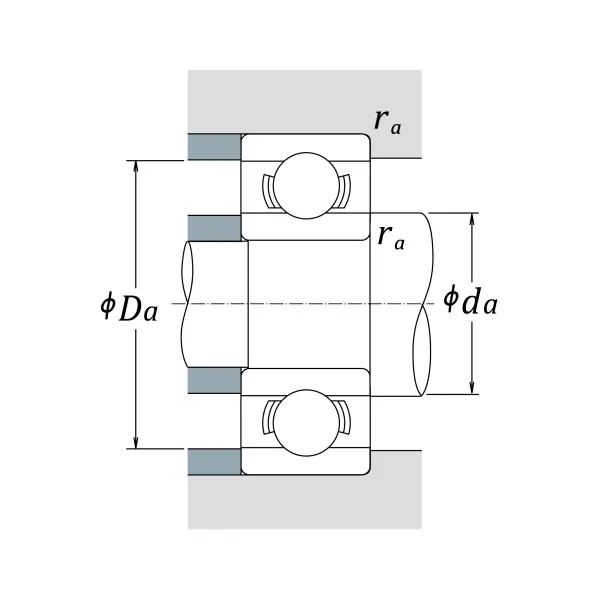

da (min.)
11
mm
Diameter of shaft abutment
Da (max.)
18
mm
Diameter of housing abutment
ra (max.)
0.3
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
z
10
Number of Balls
Dw
2.381
mm
Ball Diameter
