NSK AELPF204
Round Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
AELPF204
Included products
Bearing
Housing
PF204
Housing

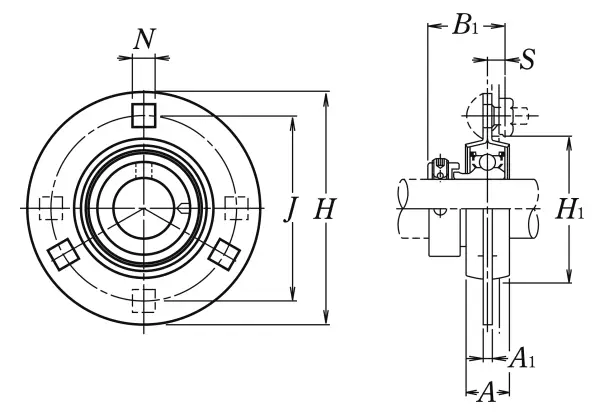

Nominal Dimensions
d
20
mm
Bore diameter
L,H
90
mm
Overall length
J
71.5
mm
Pitch diameter of attachment bolts
N
9
mm
Diameter of attachment bolt hole
A1
4
mm
Flange width
A
16
mm
Base width
B,B1,B2
31
mm
Width of inner ring
H1
56
mm
Abutment diameter
S
7.5
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M 8
Bolt size
Permissible housing load
CR
3
kN
Radial
Basic Load Ratings
Cr
12.8
kN
Basic dynamic load rating
C0r
6.65
kN
Basic static load rating
