NSK AELPF206
Round Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
AELPF206
Included products
Bearing
Housing
PF206
Housing

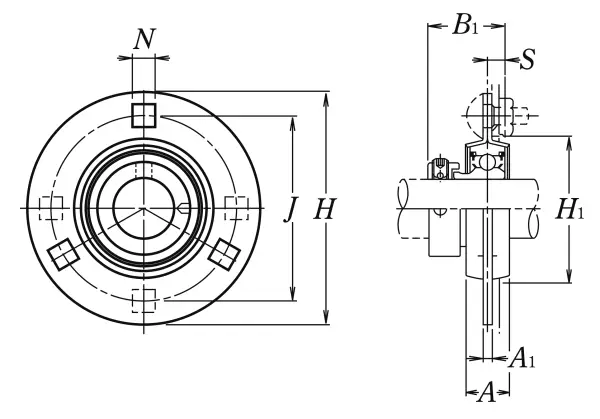

Nominal Dimensions
d
30
mm
Bore diameter
L,H
113
mm
Overall length
J
90.5
mm
Pitch diameter of attachment bolts
N
11
mm
Diameter of attachment bolt hole
A1
5.2
mm
Flange width
A
18
mm
Base width
B,B1,B2
35.7
mm
Width of inner ring
H1
71
mm
Abutment diameter
S
9
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M10
Bolt size
Permissible housing load
CR
5
kN
Radial
Basic Load Ratings
Cr
19.5
kN
Basic dynamic load rating
C0r
11.3
kN
Basic static load rating
