NSK AELPT205-10
Take-up Stretcher UnitsTM
(BRAND)：NSK
(Availability)：In Stock
Designations
AELPT205-10
Included products
Bearing

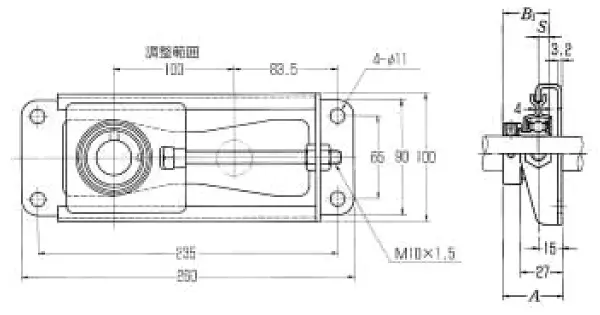

Nominal Dimensions
d
25
mm
Bore diameter
L
260
mm
Overall length
H
100
mm
Overall height
J
235
mm
Distance between attachment bolts
J1
83.5
mm
Distance between attachment bolts
A
38.5
mm
Base width
J,J2
100
mm
Travel
B1
31
mm
Width of inner ring
S
7.5
mm
Distance from Opposite side face of locking device to raceway centre
J2
100
mm
Travel
Mounting information
G
M10
Bolt size
Basic Load Ratings
Cr
14
kN
Basic dynamic load rating
C0r
7.85
kN
Basic static load rating
Mass
mass
1.2
kg
Mass approx.
