NSK AELRPF201
Round Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
AELRPF201
Included products
Bearing
Housing
PF204
Housing
Rubber ring
R201
Rubber ring

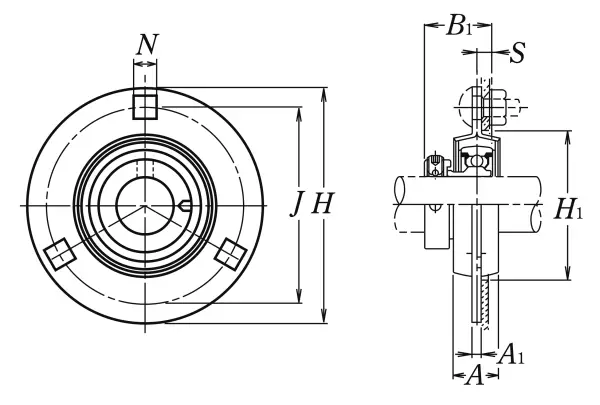

Nominal Dimensions
d
12
mm
Bore diameter
L,H
90
mm
Overall length
J
71.5
mm
Pitch diameter of attachment bolts
N
9
mm
Diameter of attachment bolt hole
A1
4
mm
Flange width
A
16
mm
Base width
B,B1,B2
28.6
mm
Width of inner ring
H1
56
mm
Abutment diameter
S
6.5
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M 8
Bolt size
Permissible housing load
CR
1
kN
Radial
CA
0.2
kN
Axial
Basic Load Ratings
Cr
9.6
kN
Basic dynamic load rating
C0r
4.6
kN
Basic static load rating
