NSK AELRPF205
Round Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
AELRPF205
Included products
Bearing
Housing
PF206
Housing
Rubber ring
R205
Rubber ring

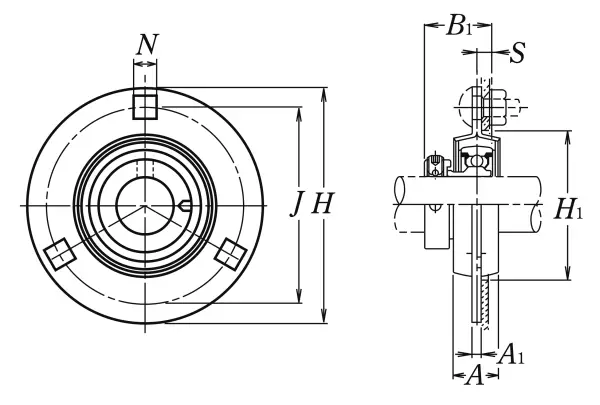

Nominal Dimensions
d
25
mm
Bore diameter
L,H
113
mm
Overall length
J
90.5
mm
Pitch diameter of attachment bolts
N
11
mm
Diameter of attachment bolt hole
A1
5.2
mm
Flange width
A
18
mm
Base width
B,B1,B2
31
mm
Width of inner ring
H1
71
mm
Abutment diameter
S
7.5
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M10
Bolt size
Permissible housing load
CR
1.3
kN
Radial
CA
0.2
kN
Axial
Basic Load Ratings
Cr
14
kN
Basic dynamic load rating
C0r
7.85
kN
Basic static load rating
