NSK AELRPF206
Round Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
AELRPF206
Included products
Bearing
Housing
PF207
Housing
Rubber ring
R206
Rubber ring

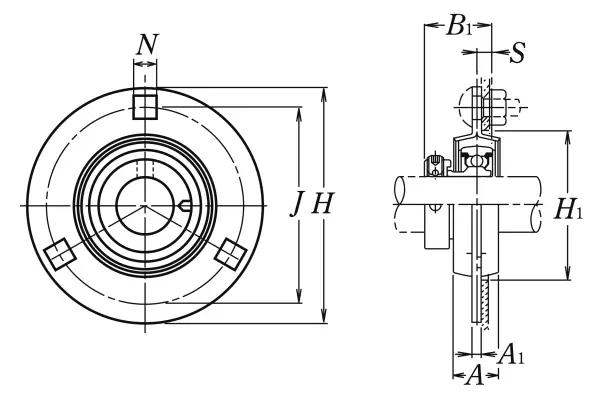

Nominal Dimensions
d
30
mm
Bore diameter
L,H
122
mm
Overall length
J
100
mm
Pitch diameter of attachment bolts
N
11
mm
Diameter of attachment bolt hole
A1
5.2
mm
Flange width
A
20
mm
Base width
B,B1,B2
35.7
mm
Width of inner ring
H1
81
mm
Abutment diameter
S
9
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M10
Bolt size
Permissible housing load
CR
1.5
kN
Radial
CA
0.2
kN
Axial
Basic Load Ratings
Cr
19.5
kN
Basic dynamic load rating
C0r
11.3
kN
Basic static load rating
