NSK ASPF201
Round Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
ASPF201
Included products
Bearing
Housing
PF203
Housing

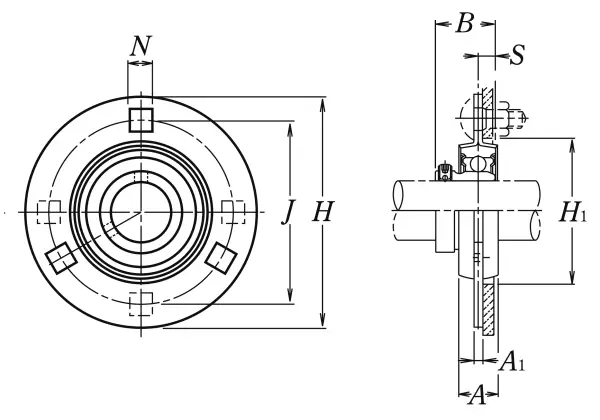

Nominal Dimensions
d
12
mm
Bore diameter
L,H
81
mm
Overall length
J
63.5
mm
Pitch diameter of attachment bolts
N
7.1
mm
Diameter of attachment bolt hole
A1
4
mm
Flange width
A
14
mm
Base width
B,B1,B2
22
mm
Width of inner ring
H1
49
mm
Abutment diameter
S
6
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M6
Bolt size
Basic Load Ratings
Cr
9.6
kN
Basic dynamic load rating
C0r
4.6
kN
Basic static load rating
Mass
mass
0.2
kg
Mass approx.
