NSK ASPF207
Round Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
ASPF207
Included products
Bearing
Housing
PF207
Housing

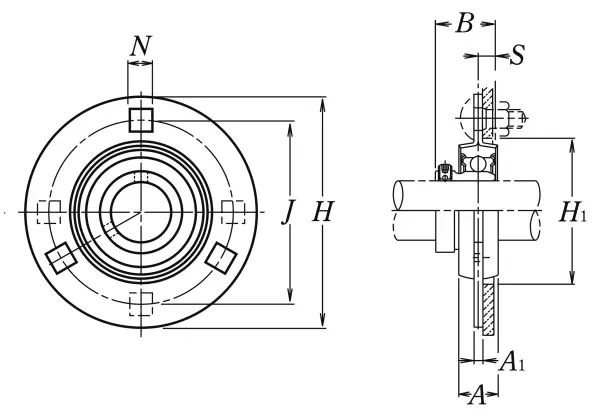

Nominal Dimensions
d
35
mm
Bore diameter
L,H
122
mm
Overall length
J
100
mm
Pitch diameter of attachment bolts
N
11
mm
Diameter of attachment bolt hole
A1
5.2
mm
Flange width
A
20
mm
Base width
B,B1,B2
34
mm
Width of inner ring
H1
81
mm
Abutment diameter
S
8.5
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M10
Bolt size
Basic Load Ratings
Cr
25.7
kN
Basic dynamic load rating
C0r
15.3
kN
Basic static load rating
Mass
mass
0.6
kg
Mass approx.
