NSK ASPF208
Round Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
ASPF208
Included products
Bearing
Housing
PF208
Housing

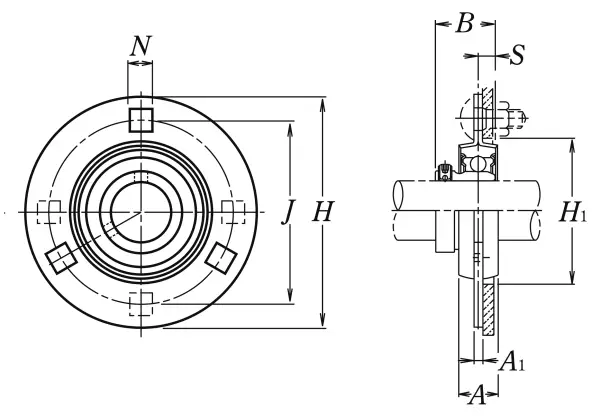

Nominal Dimensions
d
40
mm
Bore diameter
L,H
148
mm
Overall length
J
119
mm
Pitch diameter of attachment bolts
N
13.5
mm
Diameter of attachment bolt hole
A1
6.8
mm
Flange width
A
21
mm
Base width
B,B1,B2
38
mm
Width of inner ring
H1
91
mm
Abutment diameter
S
9
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M12
Bolt size
Basic Load Ratings
Cr
29.1
kN
Basic dynamic load rating
C0r
17.8
kN
Basic static load rating
Mass
mass
0.9
kg
Mass approx.
