NSK AW03X
Lock-Washer
(BRAND)：NSK
(Availability)：In Stock
Designations
AW03X
Shaft diameter (Reference)
d
17
mm
Shaft diameter (Reference)

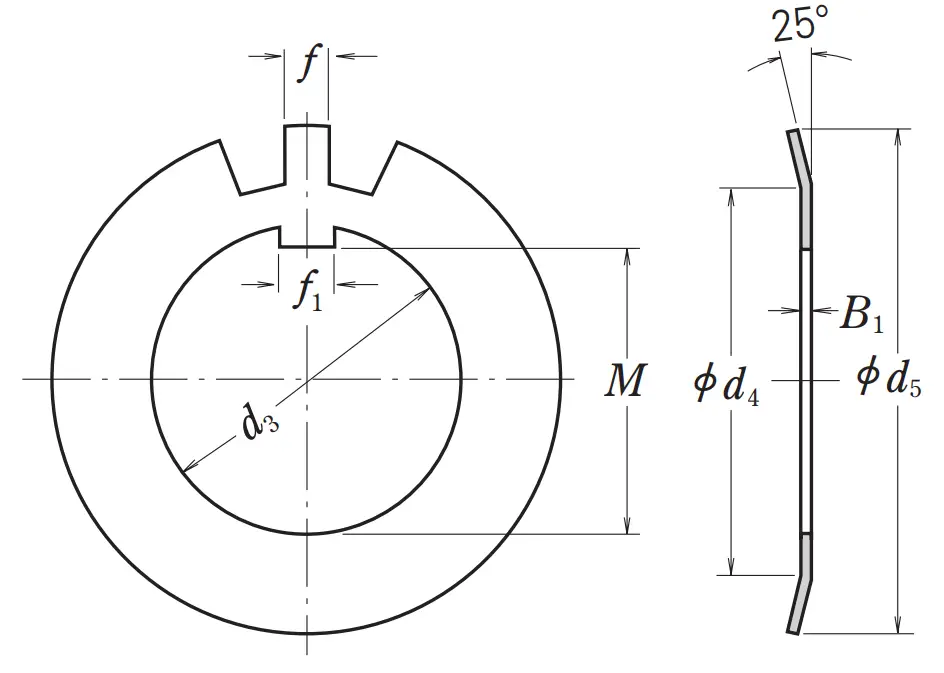

Basic Dimensions
d3
17
mm
Bore diameter
d5
32
mm
Outside diameter
B1
1
mm
Thickness material
M
15.5
mm
Inside dimension under inner tab
f1
4
mm
Width inner tab
f
4
mm
Width outer tab
d4
24
mm
Side face diameter
13
Number of Teeth
Mass
Mass
0.315
kg
Mass (approx.:per 100 pcs)
