NSK AW04
Lock-Washer
(BRAND)：NSK
(Availability)：In Stock
Designations
AW04
Shaft diameter (Reference)
d
20
mm
Shaft diameter (Reference)

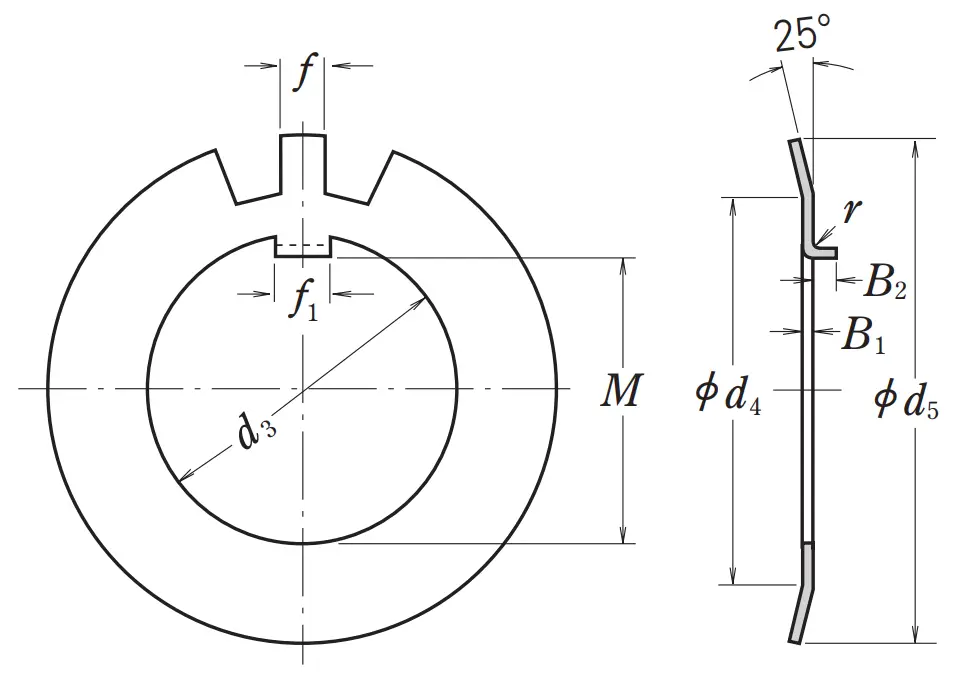

Basic Dimensions
d3
20
mm
Bore diameter
d5
36
mm
Outside diameter
B1
1
mm
Thickness material
M
18.5
mm
Inside dimension under inner tab
f1
4
mm
Width inner tab
f
4
mm
Width outer tab
d4
26
mm
Side face diameter
r
1
mm
Bent-Tab chanfer
B2
2.5
mm
Bent-Tab height
13
Number of Teeth
Mass
Mass
0.35
kg
Mass (approx.:per 100 pcs)
