NSK AW05
Lock-Washer
(BRAND)：NSK
(Availability)：In Stock
Designations
AW05
Shaft diameter (Reference)
d
25
mm
Shaft diameter (Reference)

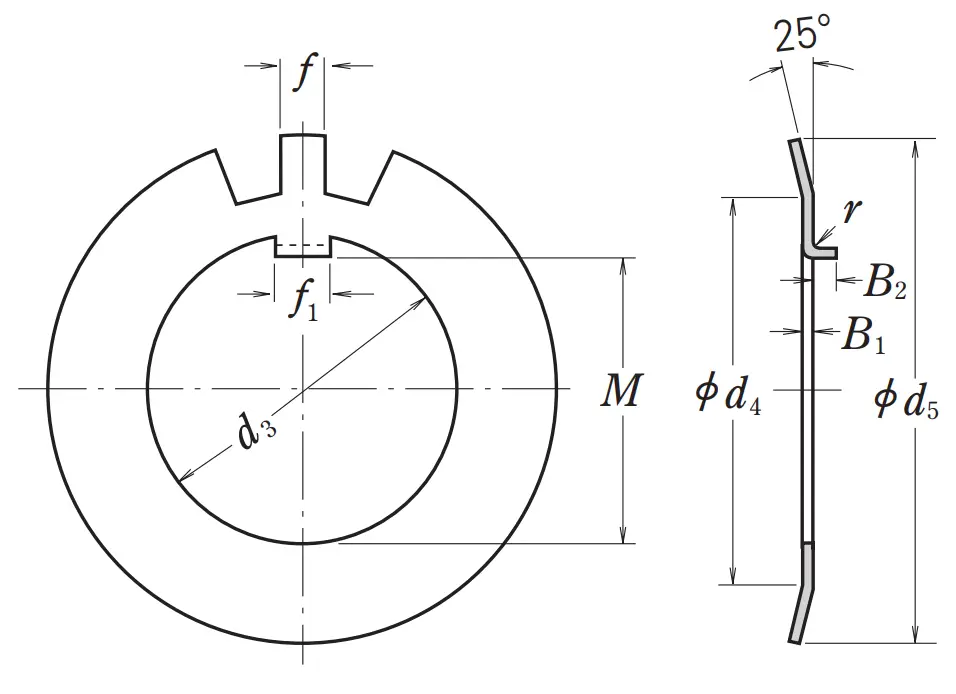

Basic Dimensions
d3
25
mm
Bore diameter
d5
42
mm
Outside diameter
B1
1.2
mm
Thickness material
M
23
mm
Inside dimension under inner tab
f1
5
mm
Width inner tab
f
5
mm
Width outer tab
d4
32
mm
Side face diameter
r
1
mm
Bent-Tab chanfer
B2
2.5
mm
Bent-Tab height
13
Number of Teeth
Mass
Mass
0.64
kg
Mass (approx.:per 100 pcs)
