NSK AW06X
Lock-Washer
(BRAND)：NSK
(Availability)：In Stock
Designations
AW06X
Shaft diameter (Reference)
d
30
mm
Shaft diameter (Reference)

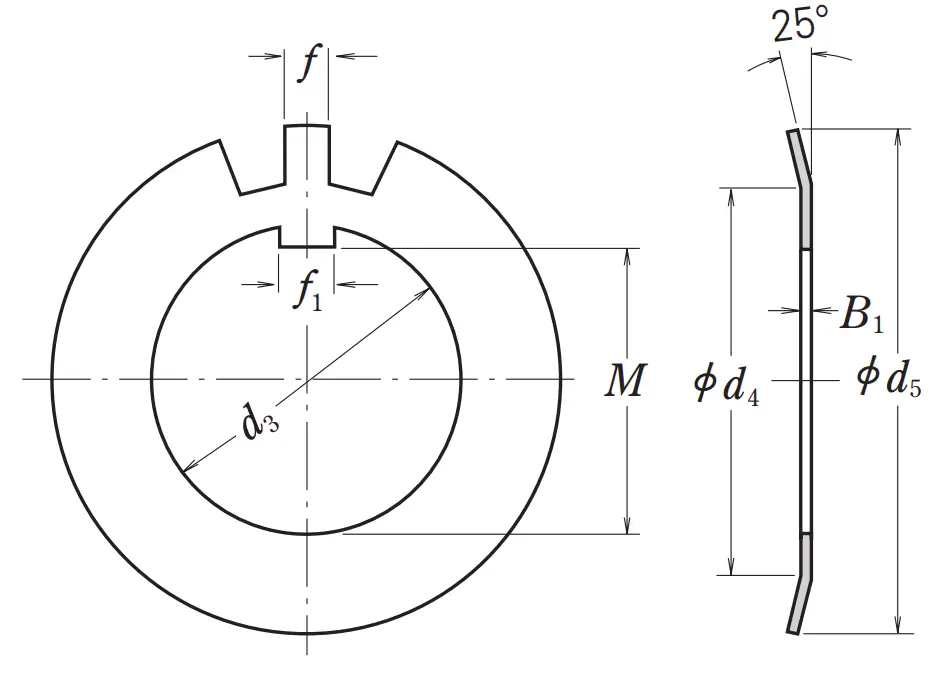

Basic Dimensions
d3
30
mm
Bore diameter
d5
49
mm
Outside diameter
B1
1.2
mm
Thickness material
M
27.5
mm
Inside dimension under inner tab
f1
5
mm
Width inner tab
f
5
mm
Width outer tab
d4
38
mm
Side face diameter
13
Number of Teeth
Mass
Mass
0.78
kg
Mass (approx.:per 100 pcs)
