NSK AW11X
Lock-Washer
(BRAND)：NSK
(Availability)：In Stock
Designations
AW11X
Shaft diameter (Reference)
d
55
mm
Shaft diameter (Reference)

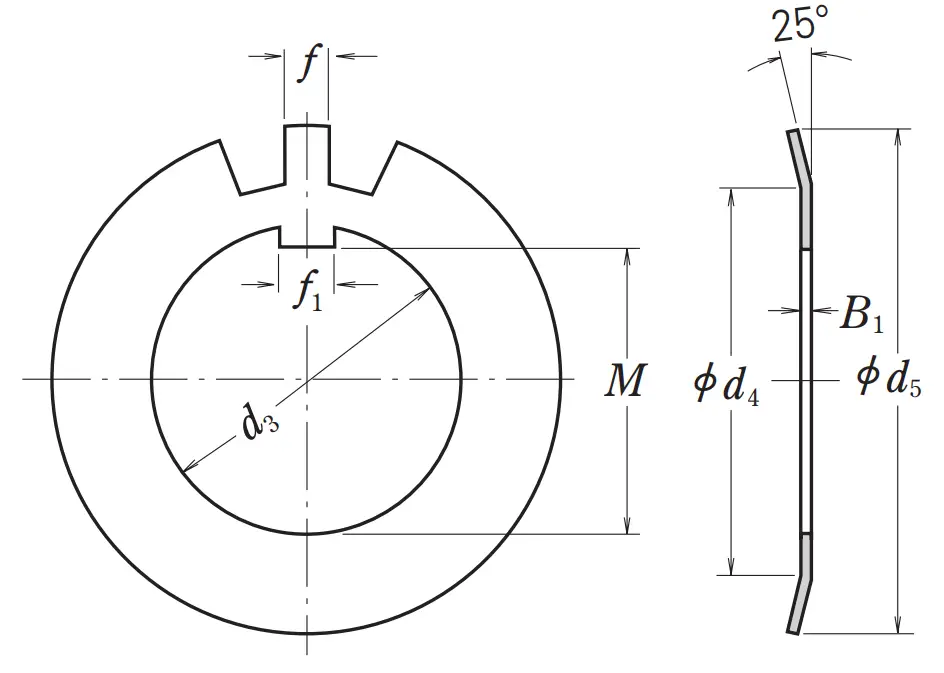

Basic Dimensions
d3
55
mm
Bore diameter
d5
81
mm
Outside diameter
B1
1.5
mm
Thickness material
M
52.5
mm
Inside dimension under inner tab
f1
8
mm
Width inner tab
f
7
mm
Width outer tab
d4
67
mm
Side face diameter
17
Number of Teeth
Mass
Mass
1.96
kg
Mass (approx.:per 100 pcs)
