NSK AW12
Lock-Washer
(BRAND)：NSK
(Availability)：In Stock
Designations
AW12
Shaft diameter (Reference)
d
60
mm
Shaft diameter (Reference)

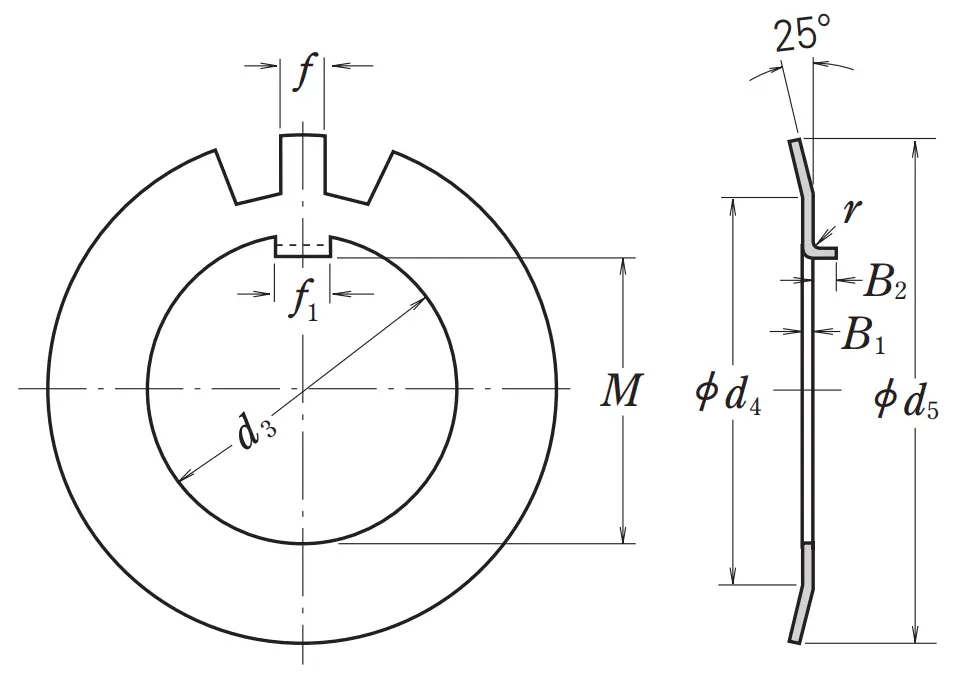

Basic Dimensions
d3
60
mm
Bore diameter
d5
86
mm
Outside diameter
B1
1.5
mm
Thickness material
M
57.5
mm
Inside dimension under inner tab
f1
8
mm
Width inner tab
f
7
mm
Width outer tab
d4
73
mm
Side face diameter
r
1.2
mm
Bent-Tab chanfer
B2
4
mm
Bent-Tab height
17
Number of Teeth
Mass
Mass
2.53
kg
Mass (approx.:per 100 pcs)
