NSK AW21X
Lock-Washer
(BRAND)：NSK
(Availability)：In Stock
Designations
AW21X
Shaft diameter (Reference)
d
105
mm
Shaft diameter (Reference)

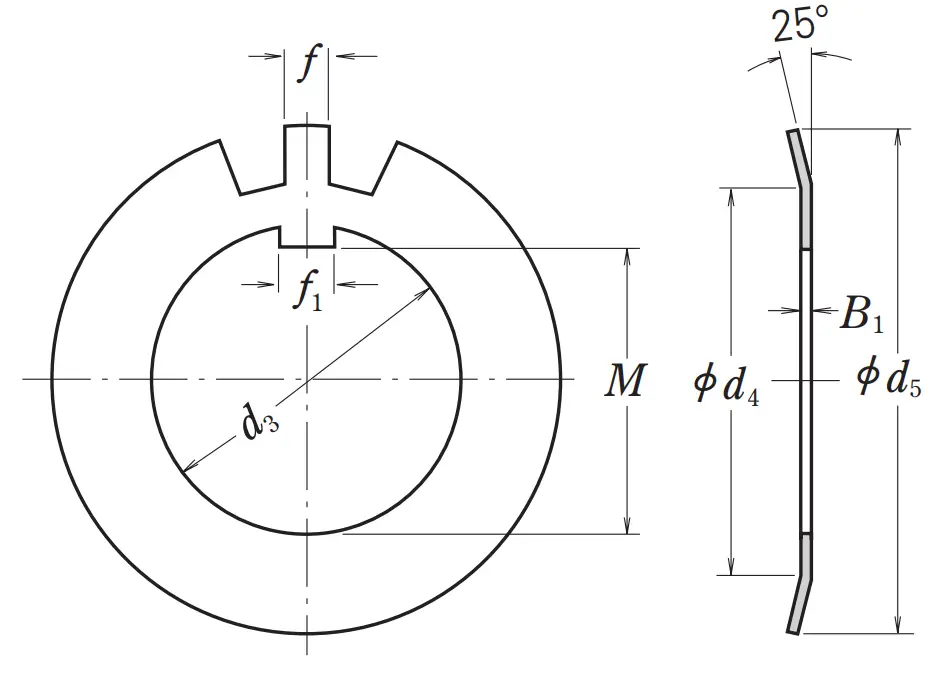

Basic Dimensions
d3
105
mm
Bore diameter
d5
145
mm
Outside diameter
B1
1.8
mm
Thickness material
M
100.5
mm
Inside dimension under inner tab
f1
12
mm
Width inner tab
f
12
mm
Width outer tab
d4
126
mm
Side face diameter
19
Number of Teeth
Mass
Mass
8.25
kg
Mass (approx.:per 100 pcs)
