NSK AW22
Lock-Washer
(BRAND)：NSK
(Availability)：In Stock
Designations
AW22
Shaft diameter (Reference)
d
110
mm
Shaft diameter (Reference)

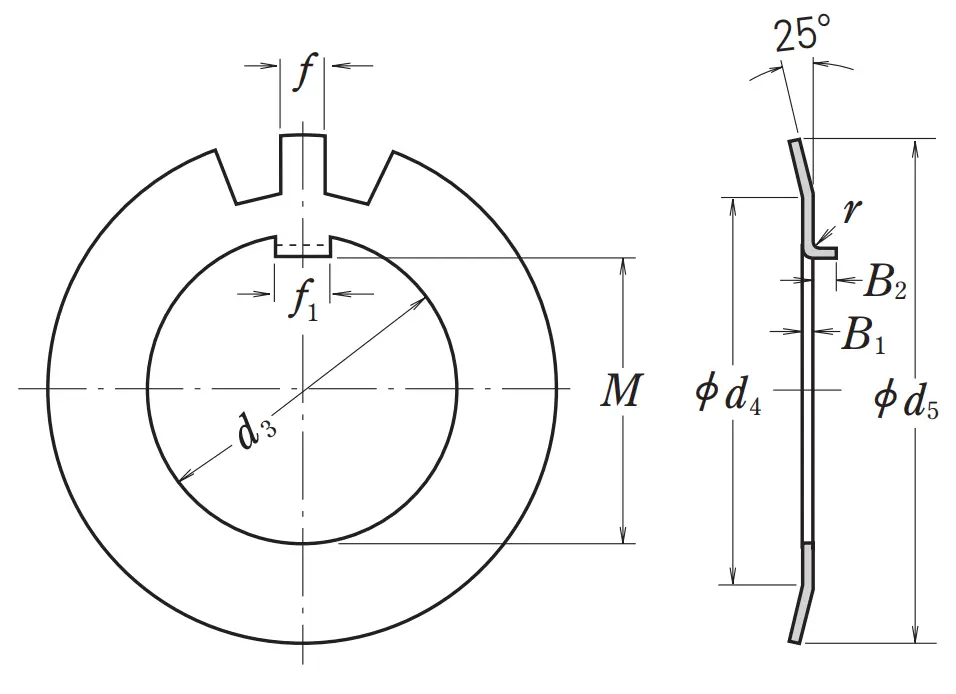

Basic Dimensions
d3
110
mm
Bore diameter
d5
154
mm
Outside diameter
B1
1.8
mm
Thickness material
M
105.5
mm
Inside dimension under inner tab
f1
12
mm
Width inner tab
f
12
mm
Width outer tab
d4
133
mm
Side face diameter
r
1.2
mm
Bent-Tab chanfer
B2
6
mm
Bent-Tab height
19
Number of Teeth
Mass
Mass
9.4
kg
Mass (approx.:per 100 pcs)
