NSK AW26
Lock-Washer
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
AW26
Shaft diameter (Reference)
d
130
mm
Shaft diameter (Reference)

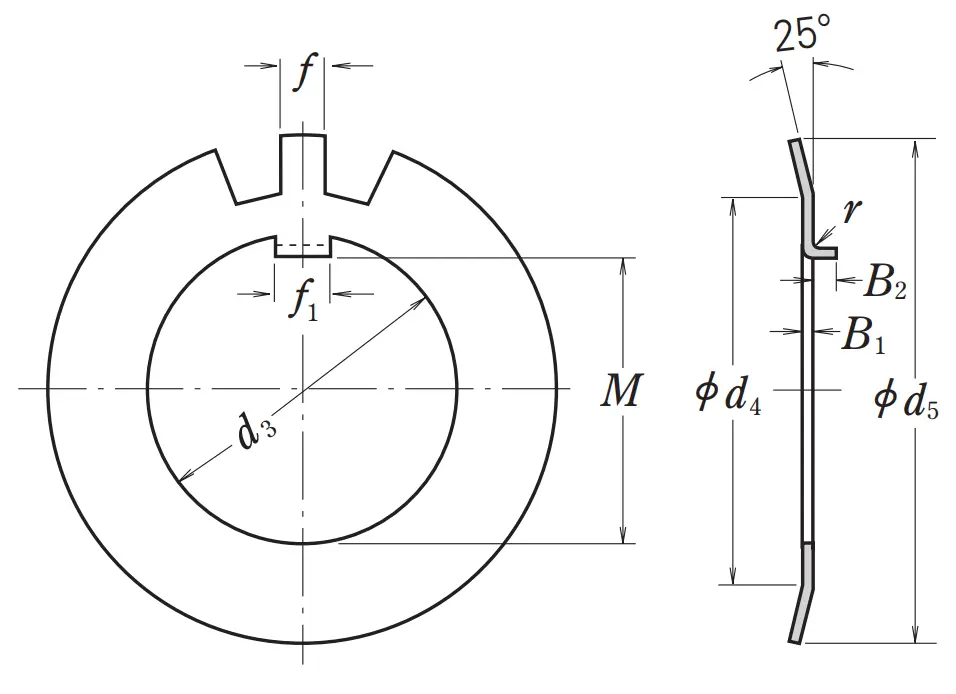

Basic Dimensions
d3
130
mm
Bore diameter
d5
175
mm
Outside diameter
B1
2
mm
Thickness material
M
125
mm
Inside dimension under inner tab
f1
14
mm
Width inner tab
f
12
mm
Width outer tab
d4
149
mm
Side face diameter
r
1.5
mm
Bent-Tab chanfer
B2
6
mm
Bent-Tab height
19
Number of Teeth
Mass
Mass
11.3
kg
Mass (approx.:per 100 pcs)
