NSK AW33X
Lock-Washer
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
AW33X
Shaft diameter (Reference)
d
165
mm
Shaft diameter (Reference)

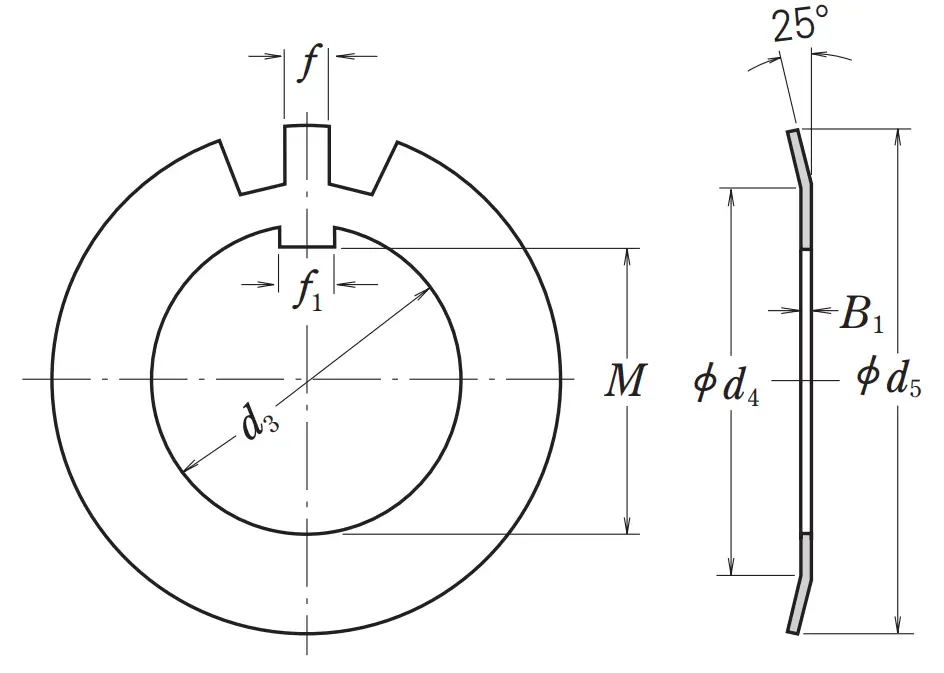

Basic Dimensions
d3
165
mm
Bore diameter
d5
222
mm
Outside diameter
B1
2.5
mm
Thickness material
M
157.5
mm
Inside dimension under inner tab
f1
18
mm
Width inner tab
f
16
mm
Width outer tab
d4
193
mm
Side face diameter
19
Number of Teeth
Mass
Mass
24.1
kg
Mass (approx.:per 100 pcs)
