NSK BL218ZZ
Maximum-Type Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
BL218ZZ

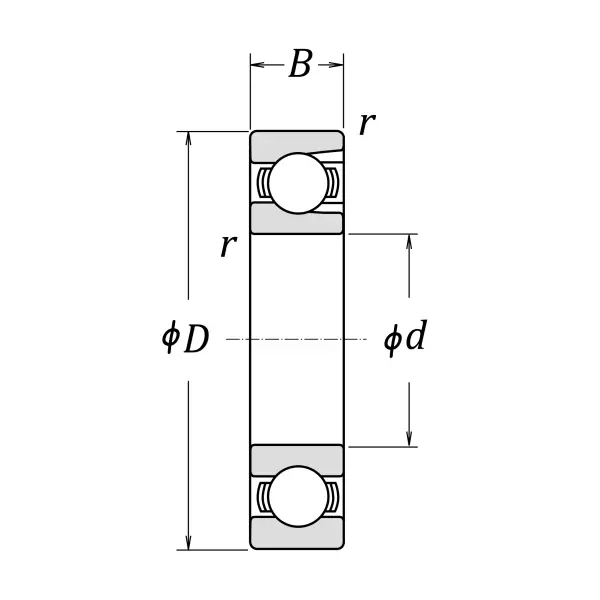

Boundary Dimensions
d
90
mm
Bore diameter
D
160
mm
Outside diameter
B
30
mm
Width
r (min.)
2
mm
Chamfer dimension
Basic Load Ratings
Cr
117000
N
Basic dynamic load rating
C0r
107000
N
Basic static load rating
Speeds
Grease
3800
min-1
Grease lubrication

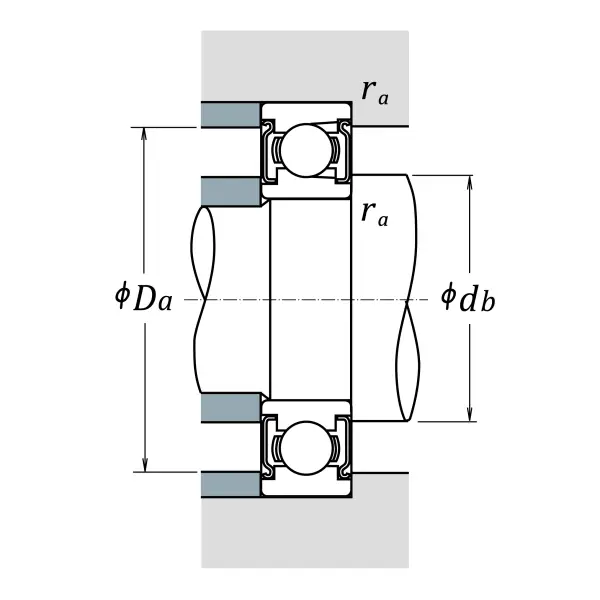

da (min.)
99
mm
Diameter of shaft abutment
Da (max.)
151
mm
Diameter of housing abutment
db (max.)
107.5
mm
Diameter of shaft abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
2.43
kg
Mass approx.
